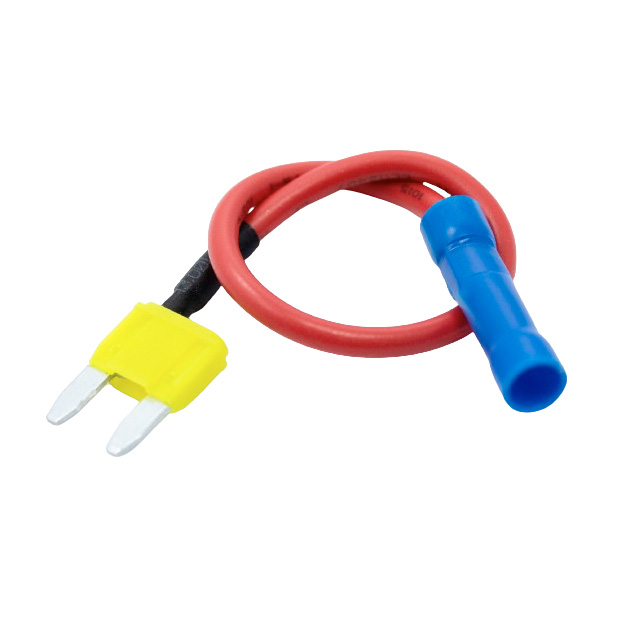

ANM-W-20A-16R
ActiveOptiFuse
FUSE AUTO 20A 32VDC BLADE MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM-W-20A-16R
ActiveOptiFuse
FUSE AUTO 20A 32VDC BLADE MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANM-W-20A-16R | ANM-W Series |
|---|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Yellow | Yellow, Blue, Red |
| Current Rating (Amps) | 20 A | 10 - 20 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | Blade, Miniature | Blade, Miniature |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 0.429 " | 0.429 " |
| Size / Dimension [x] | 10.9 mm | 10.9 mm |
| Size / Dimension [y] | 0.15 " | 0.15 " |
| Size / Dimension [y] | 3.8 mm | 3.8 mm |
| Size / Dimension [z] | 9.2 mm | 9.2 mm |
| Size / Dimension [z] | 0.362 in | 0.362 in |
| Voltage Rating - DC | 32 V | 32 V |
ANM-W Series
FUSE AUTO 20A 32VDC BLADE MINI
| Part | Package / Case | Color | Voltage Rating - DC | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Response Time | Breaking Capacity @ Rated Voltage | Fuse Type | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANM-W-20A-16R | Blade, Miniature | Yellow | 32 V | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | Fast Blow | 1 kA | Automotive | 20 A | Requires Holder |
OptiFuse ANM-W-15A-16R | Blade, Miniature | Blue | 32 V | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | Fast Blow | 1 kA | Automotive | 15 A | Requires Holder |
OptiFuse ANM-W-20A-18R | Blade, Miniature | Yellow | 32 V | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | Fast Blow | 1 kA | Automotive | 20 A | Requires Holder |
OptiFuse ANM-W-10A-18R | Blade, Miniature | Red | 32 V | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | Fast Blow | 1 kA | Automotive | 10 A | Requires Holder |
OptiFuse ANM-W-15A-18R | Blade, Miniature | Blue | 32 V | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | Fast Blow | 1 kA | Automotive | 15 A | Requires Holder |
OptiFuse ANM-W-10A-16R | Blade, Miniature | Red | 32 V | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | Fast Blow | 1 kA | Automotive | 10 A | Requires Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.93 | |
Description
General part information
ANM-W Series
20 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
