ZMCJF7L0T

Active

LITTELFUSE

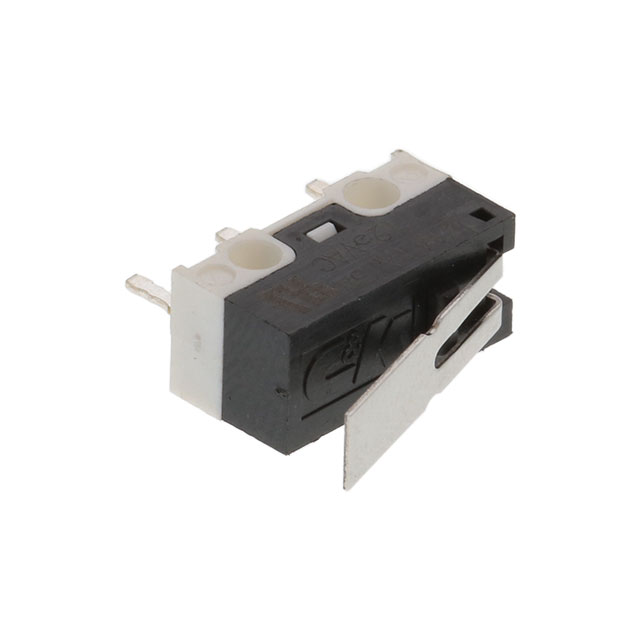

SWITCH SNAP ACTION N.O./N.C. SPDT LEAF LEVER 3A 125VAC 1.47N THRU-HOLE PC PINS BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet zm +1

ZMCJF7L0T

Active

LITTELFUSE

SWITCH SNAP ACTION N.O./N.C. SPDT LEAF LEVER 3A 125VAC 1.47N THRU-HOLE PC PINS BULK

Deep-Dive with AI

DocumentsDatasheet zm +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	42	$ 1.49
		85	$ 1.49
		250	$ 1.46
		300	$ 1.38
Digikey	Tray	1	$ 2.89
		10	$ 2.67
		25	$ 2.50
		40	$ 2.45
		80	$ 1.95
		300	$ 1.84
		600	$ 1.73
		1200	$ 1.61
		5100	$ 1.50

Description

General part information

Zm0 Series Series

Designers of PCB detection switches, communication devices and testing equipment turn to the ZM series from C&K because of their reputation for being reliable and long-lasting. The ZM series is a mini size snap-acting switch that features a reliable snap-acting mechanism, compact size and the long electrical and mechanical life that today’s applications require.

Documents

Technical documentation and resources

Datasheet

zm

Datasheet

snap

Complete Product Line

Specification	ZMCJF7L0T	Zm0 Series Series

Actuator Type	Leaf, Lever	Round (Pin Plunger), Leaf, Lever, Simulated Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	3 - 200 mA
Electrical Life	15000 Cycles	15000 Cycles
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Operating Force	50 gf	30 - 150 gf
Operating Position	8.4 mm	8.4 - 10.5 mm
Operating Position	0.33 in	0.33 - 0.413 in
Operating Position	-	0.276 in
Operating Position	-	7 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	-	60 VDC

Part	Switch Function	Mounting Type	Actuator Type	Current Rating (Amps)	Voltage Rating - DC	Electrical Life	Circuit	Termination Style	Operating Position [x]	Operating Position [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Voltage Rating - AC	Operating Position	Operating Position
LITTELFUSE ZMCJM9P0K	On-Mom	Through Hole	Round (Pin Plunger)	200 mA	60 VDC	15000 Cycles	SPDT	PC Pin	0.276 in	7 mm	-30 ░C	85 °C	150 gf
LITTELFUSE ZMCJF7P0T	On-Mom	Through Hole	Round (Pin Plunger)	3 A		15000 Cycles	SPDT	PC Pin	0.276 in	7 mm	-30 ░C	85 °C	150 gf	125 V
LITTELFUSE ZMCJF7L0K	On-Mom	Through Hole	Leaf, Lever	3 A		15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C	50 gf	125 V	8.4 mm	0.33 in
LITTELFUSE ZMCHF7T23T	On-Mom	Through Hole	Lever, Simulated Roller	3 A		15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C		125 V	10.5 mm	0.413 in
LITTELFUSE ZMCJF7L0T	On-Mom	Through Hole	Leaf, Lever	3 A		15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C	50 gf	125 V	8.4 mm	0.33 in
LITTELFUSE ZMCHF7T23L	On-Mom	Through Hole, Right Angle	Lever, Simulated Roller	3 A		15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C		125 V	10.5 mm	0.413 in
LITTELFUSE ZMCJF7T13R	On-Mom	Through Hole, Right Angle	Lever, Simulated Roller	3 A		15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C	40 gf	125 V	10.5 mm	0.413 in
LITTELFUSE ZMCJM9L0T	On-Mom	Through Hole	Leaf, Lever	200 mA	60 VDC	15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C	50 gf		8.4 mm	0.33 in
LITTELFUSE ZMCHM9T23K	On-Mom	Through Hole	Lever, Simulated Roller	200 mA	60 VDC	15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C			10.5 mm	0.413 in
LITTELFUSE ZMCJM9T13L	On-Mom	Through Hole, Right Angle	Lever, Simulated Roller	200 mA	60 VDC	15000 Cycles	SPDT	PC Pin			-30 ░C	85 °C	40 gf		10.5 mm	0.413 in
