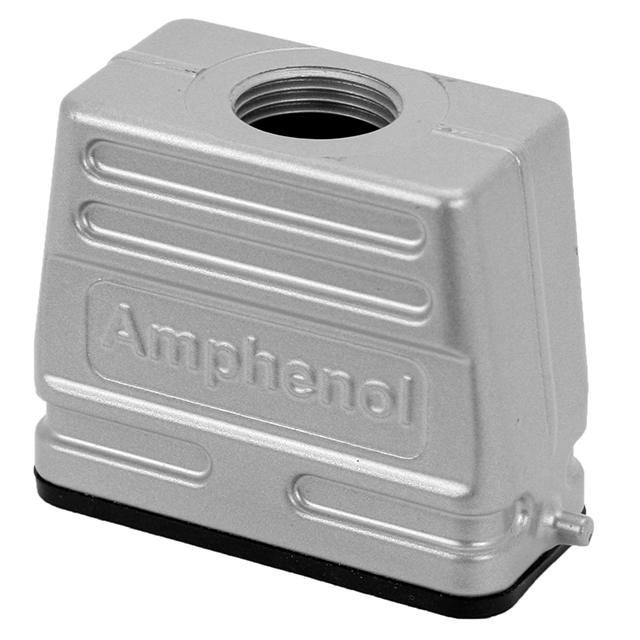

C146 21R010 650 4

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZA10 M20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 21R010 650 4

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	2.461 "
Size / Dimension [x]	62.5 mm
Size / Dimension [y]	29.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [z]	2.087 in
Size / Dimension [z]	53 mm
Style	Top Entry
Thread Size	M20

C146 21R010 Series

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Connector Type	Lock Location	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Style	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features
Amphenol Tuchel Industrial C146 21R010 502 8	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M32	Hood	Locking Clip (2) on Hood	Aluminum Die Cast	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	Side Entry	E10
Amphenol Tuchel Industrial C146 21R010 552 1	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M20	Hood	Locking Clip (2) on Hood	Aluminum Alloy Die Cast				2.008 "	1.693 in	2.874 in	Side Entry	E10	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 21R010 607 8	IP65 - Dust Tight Water Resistant	100 °C	-40 °C		Hood	Locking Clip (1) on Base Bottom	Aluminum Die Cast	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	Top Entry	E10
Amphenol Tuchel Industrial C146 21R010 650 8	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M25	Hood	Locking Clip (2) on Base Bottom	Aluminum Die Cast	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	Top Entry	E10
Amphenol Tuchel Industrial C146 21R010 854 1	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M20	Hood - Coupling	Locking Clip (2) on Hood Top	Aluminum Alloy Die Cast				2.008 "	1.693 in	2.874 in	Bottom Entry	E10	73 mm	51 mm	43 mm	Cable to Cable
Amphenol Tuchel Industrial C146 21R010 804 8	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M32	Hood - Coupling	Locking Clip (1) on Hood Top	Aluminum Die Cast	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	Bottom Entry	E10				Cable to Cable
Amphenol Tuchel Industrial C146 21R010 556 8	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M25	Hood	Locking Clip (1) on Base Bottom	Aluminum Die Cast	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	Side Entry	E10
Amphenol Tuchel Industrial C146 21R010 854 4	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M20	Hood - Coupling	Locking Clip (1) on Hood Top	Aluminum Alloy Die Cast	2.992 in	1.161 "	1.87 "	47.5 mm	29.5 mm	76 mm	Bottom Entry	A10				Cable to Cable
Amphenol Tuchel Industrial C146 21R010 550 4	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M20	Hood	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	2.461 "	1.161 "	2.087 in	53 mm	29.5 mm	62.5 mm	Side Entry	A10
Amphenol Tuchel Industrial C146 21R010 650 4	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	M20	Hood	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	2.461 "	1.161 "	2.087 in	53 mm	29.5 mm	62.5 mm	Top Entry	A10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 13.58

Description

General part information

C146 21R010 Series

Hood Connector Top Entry M20 A10 IP65 - Dust Tight, Water Resistant
