ANM-UL-7.5A
ActiveOptiFuse

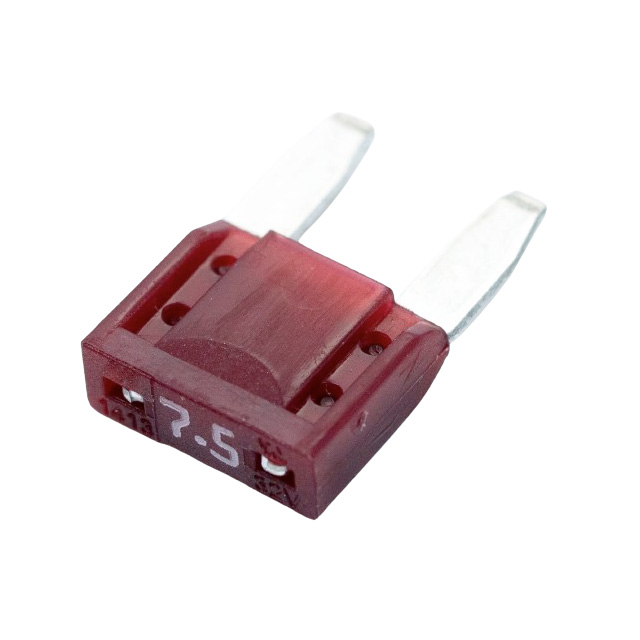

FUSE AUTO 7.5A 32VDC BLADE MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM-UL-7.5A
ActiveOptiFuse
FUSE AUTO 7.5A 32VDC BLADE MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANM-UL-7.5A | ANM-UL Series |
|---|---|---|
| Approval Agency | ISO, UL 248, SAE, cURus | ISO, UL 248, SAE, cURus |
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Brown | White, Clear, Tan, Blue, Brown, Pink |
| Current Rating (Amps) | 7.5 A | 4 - 25 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | Blade, Miniature | Blade, Miniature |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 0.472 in | 0.472 in |
| Size / Dimension [x] | 12 mm | 12 mm |
| Size / Dimension [y] | 0.157 in | 0.157 in |
| Size / Dimension [y] | 4 mm | 4 mm |
| Size / Dimension [z] | 0.386 in | 0.386 in |
| Size / Dimension [z] | 9.8 mm | 9.8 mm |
| Voltage Rating - DC | 32 V | 32 V |
ANM-UL Series
FUSE AUTO 25A 32VDC BLADE MINI
| Part | Approval Agency | Response Time | Current Rating (Amps) | Fuse Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Color | Voltage Rating - DC | Package / Case | Breaking Capacity @ Rated Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANM-UL-25A | cURus, ISO, SAE, UL 248 | Fast Blow | 25 A | Automotive | 0.157 in | 0.386 in | 4 mm | 9.8 mm | 0.472 in | 12 mm | Clear, White | 32 V | Blade, Miniature | 1 kA | Requires Holder |
OptiFuse ANM-UL-5A | cURus, ISO, SAE, UL 248 | Fast Blow | 5 A | Automotive | 0.157 in | 0.386 in | 4 mm | 9.8 mm | 0.472 in | 12 mm | Tan | 32 V | Blade, Miniature | 1 kA | Requires Holder |
OptiFuse ANM-UL-15A | cURus, ISO, SAE, UL 248 | Fast Blow | 15 A | Automotive | 0.157 in | 0.386 in | 4 mm | 9.8 mm | 0.472 in | 12 mm | Blue | 32 V | Blade, Miniature | 1 kA | Requires Holder |
OptiFuse ANM-UL-7.5A | cURus, ISO, SAE, UL 248 | Fast Blow | 7.5 A | Automotive | 0.157 in | 0.386 in | 4 mm | 9.8 mm | 0.472 in | 12 mm | Brown | 32 V | Blade, Miniature | 1 kA | Requires Holder |
OptiFuse ANM-UL-4A | cURus, ISO, SAE, UL 248 | Fast Blow | 4 A | Automotive | 0.157 in | 0.386 in | 4 mm | 9.8 mm | 0.472 in | 12 mm | Pink | 32 V | Blade, Miniature | 1 kA | Requires Holder |
