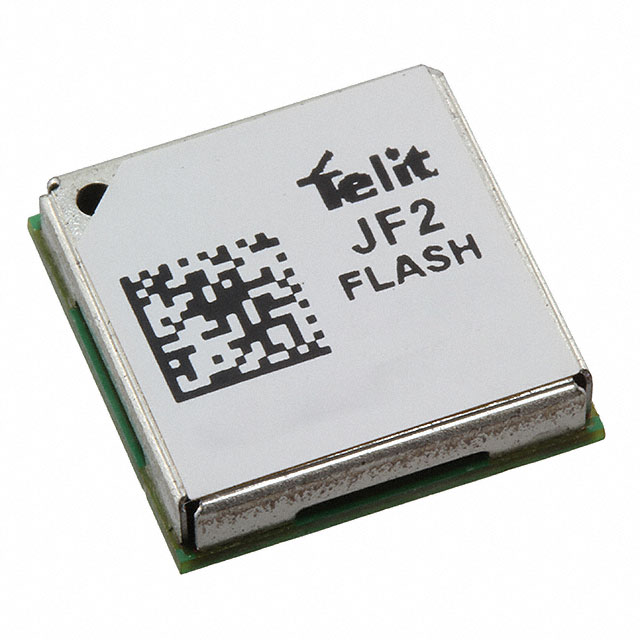

J-F2-B3E8-DR

Unknown

Telit Cinterion

RF RECEIVER GPS 1.575GHZ MODULE

Search across all available documentation for this part.

Unknown

Telit Cinterion

RF RECEIVER GPS 1.575GHZ MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

RF RECEIVER GPS 1.575GHZ MODULE

Part	Frequency	Antenna Connector	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Modulation or Protocol	Mounting Type	Features	Data Interface	Supplier Device Package	Package / Case	Current - Receiving	Sensitivity
Telit Cinterion J-F2-B3E9-DR	1.575 GHz	On-Board, Trace	GPS	85 °C	-40 °C	GPS	Surface Mount	9600 bit rate	1PPS, I2C, SPI, UART	Module	32-QFN Exposed Pad	37 mA	-163 dBm
Telit Cinterion J-F2-B3E8-DR	1.575 GHz	On-Board, Trace	GPS	85 °C	-40 °C	GPS	Surface Mount	4800 bit rate	1PPS, I2C, SPI, UART	Module	Module	37 mA	-163 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jupiter RF Receiver GPS 1.575GHz -163dBm On-Board, Trace Module

Technical documentation and resources

No documents available
