MP2-S090G-51M1-C-KR

Active

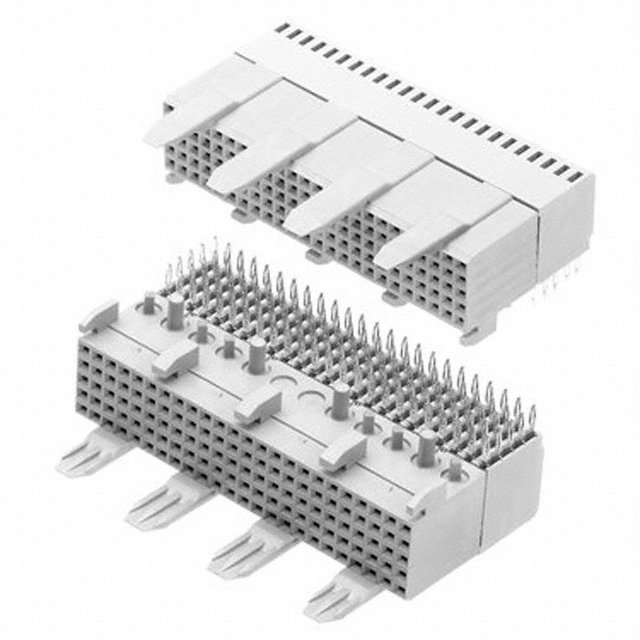

CONN RCPT FUTUREBUS+ 90P EDGE MT

Search across all available documentation for this part.

Active

CONN RCPT FUTUREBUS+ 90P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-S090G-51M1-C-KR

Color	Beige
Connector Style	Futurebus+®
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Features	Board Guide, Board Lock, Spacer
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

CONN RCPT FUTUREBUS+ 90P EDGE MT

Part	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Features	Material Flammability Rating	Termination	Color	Contact Finish	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Usage	Current Rating (Amps)
3M MP2-S090G-51M1-C-KR	All	0.76 Ám	30 Áin	0.079 in	2 mm	Board Edge, Right Angle, Through Hole	Receptacle, Female Sockets	Board Guide, Board Lock, Spacer	UL94 V-0	Solder	Beige	Gold	5	90	-55 °C	125 °C	Futurebus+®	Backplane	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

90 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Beige Futurebus+®
