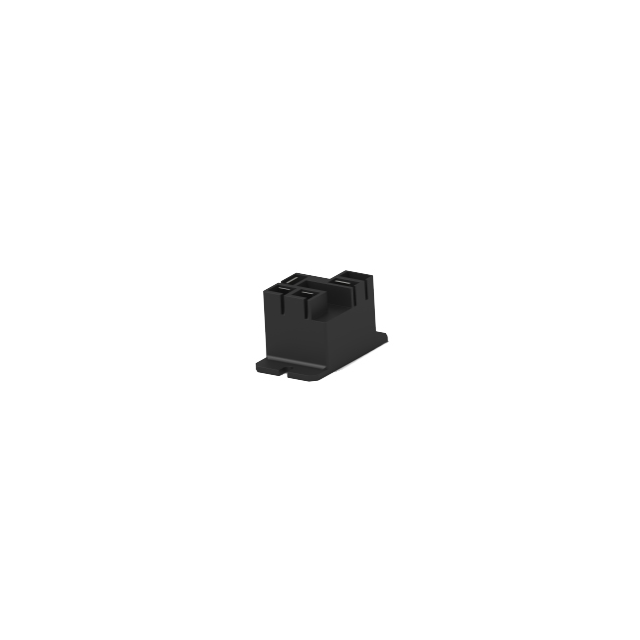

T9AP1D52-9

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 30A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T9AP1D52-9

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 30A 9V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9AP1D52-9

Coil Insulation	Class F
Coil Resistance	81 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	30 A
Load - Max Switching	8310 VA
Mounting Type	Chassis Mount
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage [Max]	277 VAC
Termination Style	Quick Connect - 0.187"/0.250"

T9AP1 Series

Part	Contact Rating (Current)	Contact Form	Must Release Voltage	Operate Time	Termination Style	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Load - Max Switching	Coil Type	Coil Insulation	Coil Voltage	Relay Type	Switching Voltage [Max]	Contact Material	Release Time	Must Operate Voltage	Mounting Type	Termination Style
TE Connectivity Potter & Brumfield Relays T9AP1D52-24	30 A	SPST-NO (1 Form A)	2.4 VDC	15 ms	Quick Connect - 0.187"/0.250"	576 Ohms	85 °C	-55 °C	41.7 mA	8310 VA	Non Latching	Class F	24 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	18 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D52-48-01	30 A	SPST-NO (1 Form A)	4.8 VDC	15 ms	Quick Connect - 0.187"/0.250"	2.3 kOhms	85 °C	-55 °C	21 mA	8310 VA	Non Latching	Class F	48 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	36 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D52-22	30 A	SPST-NO (1 Form A)	2.2 VDC	15 ms	Quick Connect - 0.187"/0.250"	484 Ohms	85 °C	-55 °C	45.5 mA	8310 VA	Non Latching	Class F	22 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	16.5 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D52-24-01	30 A	SPST-NO (1 Form A)	2.4 VDC	15 ms	Quick Connect - 0.187"/0.250"	576 Ohms	85 °C	-55 °C	41.7 mA	8310 VA	Non Latching	Class F	24 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	18 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D52-110	30 A	SPST-NO (1 Form A)	11 VDC	15 ms	Quick Connect - 0.187"/0.250"	12.1 kOhms	85 °C	-55 °C	9 mA	8310 VA	Non Latching	Class F	110 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	82.5 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D52-48-03	30 A	SPST-NO (1 Form A)	4.8 VDC	15 ms	Quick Connect - 0.187"/0.250"	2.3 kOhms	85 °C	-55 °C	21 mA	8310 VA	Non Latching	Class F	48 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	36 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D22-18-01	30 A	SPST-NO (1 Form A)	1.8 VDC	15 ms	PC Pin Quick Connect	324 Ohms	85 °C	-55 °C		8310 VA	Non Latching	Class F	18 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	13.5 VDC	Through Hole	0.25 in
TE Connectivity Potter & Brumfield Relays T9AP1D52-9	30 A	SPST-NO (1 Form A)	0.9 VDC	15 ms	Quick Connect - 0.187"/0.250"	81 Ohms	85 °C	-55 °C		8310 VA	Non Latching	Class F	9 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	6.75 VDC	Chassis Mount
TE Connectivity Potter & Brumfield Relays T9AP1D52-36-01	30 A	SPST-NO (1 Form A)	3.6 VDC	15 ms	Quick Connect - 0.187"/0.250"	1.3 kOhms	85 °C	-55 °C	27.8 mA	8310 VA	Non Latching	Class F	36 VDC	General Purpose	277 VAC	Silver Cadmium Oxide (AgCdO)	15 ms	27 VDC	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.12
		10	$ 6.22
		25	$ 5.89
		50	$ 5.66
		100	$ 5.43
		250	$ 5.15
		500	$ 4.94
		1000	$ 4.75

Description

General part information

T9AP1 Series

General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Chassis Mount
