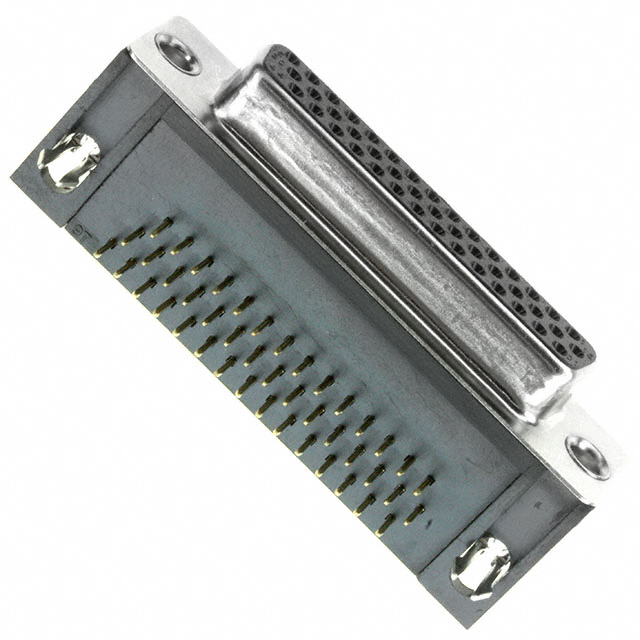

181-044-213R531

Active

NorComp Inc.

CONN D-SUB HD RCPT 44P R/A SLDR

181-044-213R531

Active

NorComp Inc.

CONN D-SUB HD RCPT 44P R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

181-044 Series

44 Position D-Sub, High Density Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	181-044-213R531

Backset Spacing	0.35 in
Color	Black
Connector Layout	DB, B, High Density
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	44
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	250 V

181-044 Series

Part	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features	Connector Style	Mounting Type	Shell Size	Connector Layout	Contact Finish	Flange Feature	Number of Rows	Connector Type	Number of Positions	Current Rating	Material Flammability Rating	Termination	Shell Material	Finish	Backset Spacing	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Voltage Rating	Color
NorComp Inc. 181-044-213R561	Flash	Flash	Board Lock Shielded	D-Sub High Density	Panel Mount Right Angle Through Hole	3	B DB High Density	Gold	Female Screwlock (4-40) Mating Side	3	Female Sockets Receptacle	44	3 A	UL94 V-0	Solder	Steel	Nickel Plated	0.35 in	Signal	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	250 V	Black
NorComp Inc. 181-044-113R171	Flash	Flash	Ground Strap Grounding Indents Shielded	D-Sub High Density	Panel Mount Right Angle Through Hole	3	B DB High Density	Gold	Housing Shell (4-40)	3	Male Pins Plug	44	3 A	UL94 V-0	Solder	Steel	Nickel Plated	0.35 in	Signal	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	250 V	Black
NorComp Inc. 181-044-212-171	Flash	Flash	Ground Strap	D-Sub High Density	Panel Mount Right Angle Through Hole	3	B DB High Density	Gold	Housing Shell (4-40)	3	Female Sockets Receptacle	44	2 A	UL94 V-0	Solder	Steel	Tin Plated	0.35 in	Signal	-50 °C	100 °C	Polybutylene Terephthalate (PBT)	Brass		Black
NorComp Inc. 181-044-213R531	Flash	Flash	Board Lock Shielded	D-Sub High Density	Panel Mount Right Angle Through Hole	3	B DB High Density	Gold	Housing Shell (4-40)	3	Female Sockets Receptacle	44	3 A	UL94 V-0	Solder	Steel	Nickel Plated	0.35 in	Signal	-55 °C	105 °C	Nylon 9T Polyamide (PA9T)	Brass	250 V	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

181-044-213R531 | Datasheet
