3230-4-00-01-00-00-08-0
ActiveMill-Max Manufacturing Corp.

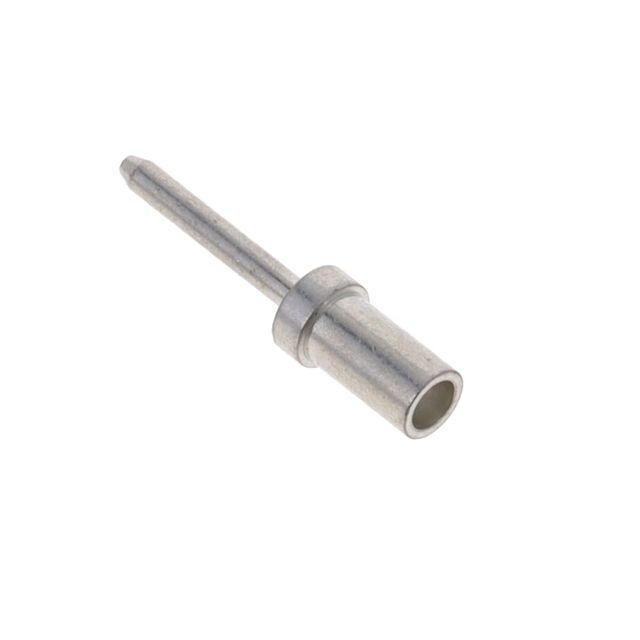

CONN PC PIN CIRC .040DIA TINLEAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3230-4-00-01-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA TINLEAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3230-4-00-01-00-00-08-0 |
|---|---|
| Board Thickness | 3.18 mm |
| Board Thickness | 0.125 in |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.77 mm |
| Flange Diameter [diameter] | 0.109 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.288 " |
| Length - Above Flange [x] | 7.32 mm |
| Length - Below Flange [x] | 3.94 mm |
| Length - Below Flange [x] | 0.155 in |
| Length - Overall [x] | 12.27 mm |
| Length - Overall [x] | 0.483 in |
| Mounting Hole Diameter [diameter] | 2.39 mm |
| Mounting Hole Diameter [diameter] | 0.094 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.88 | |||
| 100 | $ 0.79 | |||
| 1000 | $ 0.57 | |||
| 5000 | $ 0.50 | |||
| 10000 | $ 0.48 | |||
Description
General part information
3230-4 Series
PC Pin Terminal Connector Through Hole Tin-Lead 0.040" (1.02mm) Dia
