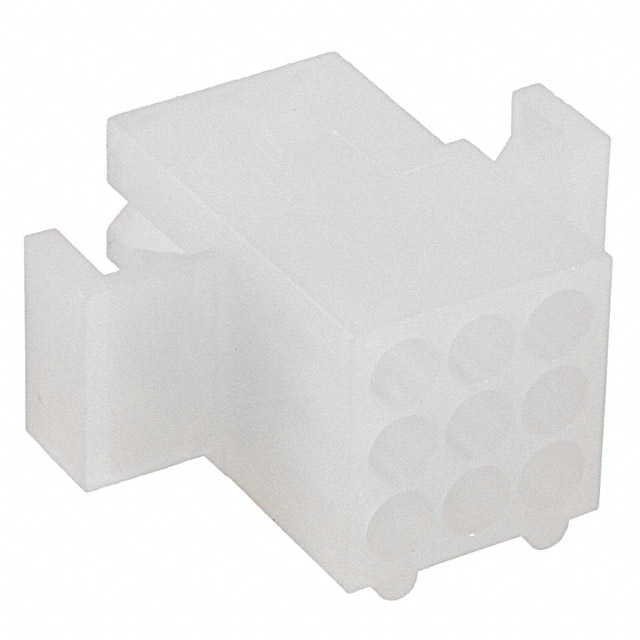

770427-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 9POS 3.68MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 9POS 3.68MM

Technical Specifications

Parameters and characteristics for this part

CONN RCPT HSG 9POS 3.68MM

Part	Mounting Type	Color	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Insulation Material	Pitch [x]	Pitch [x]	Contact Termination	Connector Type	Number of Positions	Note	Fastening Type	Contact Type
TE Connectivity AMP Connectors 770427-1	Panel Mount, Snap-In	Natural	3	105 ░C	-55 °C	3.68 mm	0.145 in	Nylon, Polyamide (PA)	3.68 mm	0.145 in	Crimp	Receptacle	9	Contacts Not Included	Locking Ramp	Male or Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.22

General part information

9 Rectangular Connectors - Housings Receptacle Natural 0.145" (3.68mm)

Technical documentation and resources

No documents available
