ATS-59004-C1-R0

Active

Advanced Thermal Solutions Inc.

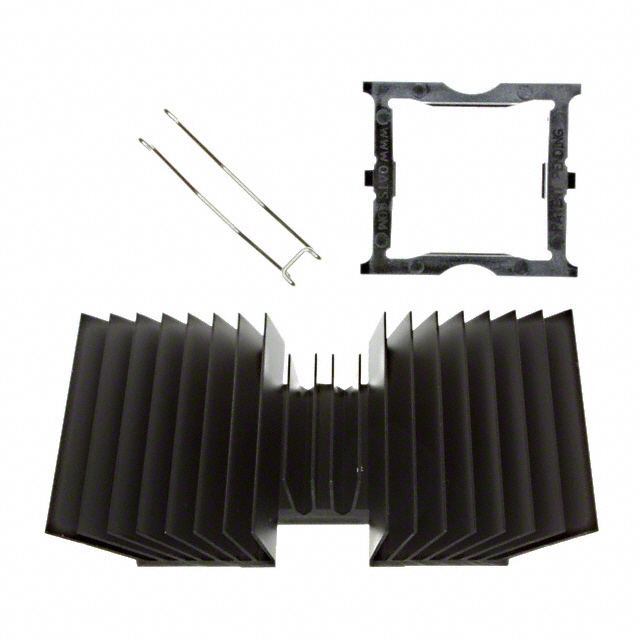

HEAT SINKS MAXIGRIP HEAT SINK ASSEMBLY, BLACK-ANODIZED, T766, 25MM COMP, 43X55X12MM

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIGRIP HEAT SINK ASSEMBLY, BLACK-ANODIZED, T766, 25MM COMP, 43X55X12MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sinks maxiGRIP Heat Sink Assembly, Black-Anodized, T766, 21mm Comp, 28x45x11mm

Specification	ATS-59004-C1-R0	Device Specific Series

Attachment Method	Clip	Clip
Fin Height [z]	0.472 in	0.394 - 0.472 in
Fin Height [z]	12 mm	10 - 12 mm
Length	-	25 - 62 mm
Length	-	0.984 in
Length [x]	32 mm	29 - 32 mm
Length [x]	1.26 "	1.142 - 2.441 in
Material	Aluminum	Aluminum
Material Finish	Black Anodized	Black Anodized
Package Cooled	Flip Chip Processors	Flip Chip Processors
Shape	Rectangular, Angled Fins	Rectangular, Fins, Rectangular, Angled Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 3.2 °C/W	3.2 - 200 LFM
Type	Top Mount	Top Mount
Width	-	1.26 in
Width	-	32 mm
Width [y]	50 mm	50 mm
Width [y]	1.969 in	1.969 in

Part	Type	Material	Material Finish	Thermal Resistance @ Forced Air Flow	Package Cooled	Shape	Attachment Method	Length	Length [x]	Width [x]	Width	Length	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Length [x]
Advanced Thermal Solutions Inc. ATS-59009-C1-R0	Top Mount	Aluminum	Black Anodized	3.2 °C/W, 200 LFM	Flip Chip Processors	Rectangular, Fins	Clip	62 mm	2.441 in
Advanced Thermal Solutions Inc. ATS-59002-C1-R0	Top Mount	Aluminum	Black Anodized	6.5 °C/W, 200 LFM	Flip Chip Processors	Rectangular, Angled Fins	Clip	25 mm		1.26 in	32 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-59003-C1-R0	Top Mount	Aluminum	Black Anodized	3.8 °C/W, 200 LFM	Flip Chip Processors	Rectangular, Angled Fins	Clip		1.26 "				0.472 in	12 mm	50 mm	1.969 in	32 mm
Advanced Thermal Solutions Inc. ATS-59005-C1-R0	Top Mount	Aluminum	Black Anodized	6.2 °C/W	Flip Chip Processors	Rectangular, Angled Fins	Clip		1.142 in				0.394 in	10 mm			29 mm
Advanced Thermal Solutions Inc. ATS-59004-C1-R0	Top Mount	Aluminum	Black Anodized	3.2 °C/W, 200 LFM	Flip Chip Processors	Rectangular, Angled Fins	Clip		1.26 "				0.472 in	12 mm	50 mm	1.969 in	32 mm
