3021066F10TTT
ActiveGlobTek, Inc.

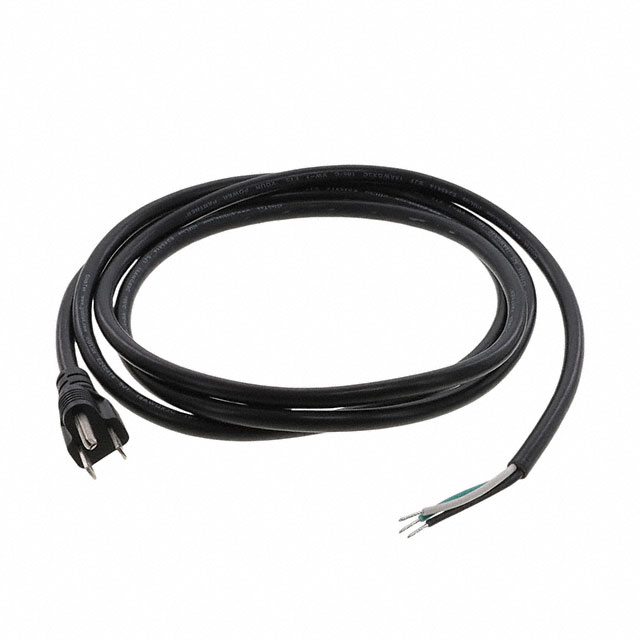

CORD 18AWG NEMA 5-15P-CBL 6.89'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3021066F10TTT
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P-CBL 6.89'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3021066F10TTT |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | Cable |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 10 A |
| Length | 6.89 ' |
| Length | 2.1 m |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins (Blades) to Leads |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
3021066 Series
| Part | Voltage Rating | Number of Conductors | Color | Approval Agency Marking | Current Rating (Amps) | Length | Length | Operating Temperature | Wire Gauge | Cord Type | 2nd Connector | Style | Approved Countries | Shielding | 1st Connector | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | 125 VAC | 3 | Black | CSA UL | 10 A | 6.89 ' | 2.1 m | 60 °C | 18 AWG | SJT | Cable | Male Pins (Blades) to Leads | Canada United States | Unshielded | NEMA 5-15P | ||
GlobTek, Inc. | 125 VAC | 3 | Black | CSA UL | 7 A | 60 °C | 18 AWG | SJT | IEC 320-C5 | Female Sockets Male Pins | Canada United States | Unshielded | NEMA 5-15P | 6.17 ft | 1.88 m | ||
GlobTek, Inc. | 125 VAC | 3 | Black | CSA UL | 10 A | 60 °C | 18 AWG | SJT | Female Sockets Male Pins | Canada United States | Unshielded | NEMA 5-15P | 6.56 ft | 2 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.88 | |
| 10 | $ 5.34 | |||
| 25 | $ 5.06 | |||
| 50 | $ 4.94 | |||
| 100 | $ 4.71 | |||
| 300 | $ 4.12 | |||
| 500 | $ 4.00 | |||
| 1000 | $ 3.41 | |||
| 2500 | $ 3.18 | |||
Description
General part information
3021066 Series
6.89' (2.10m) Power Cord Black NEMA 5-15P To Cable SJT
