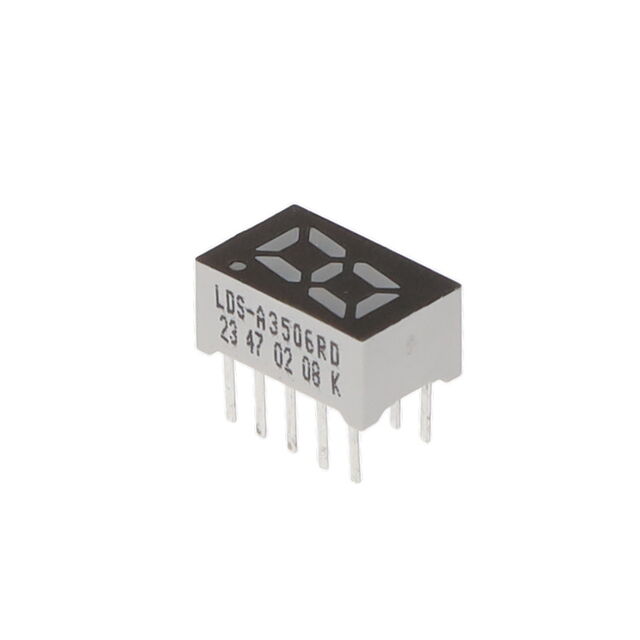

LDS-A3506RD

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.32" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDS-A3506RD

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.32" SGL RED 10DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDS-A3506RD

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	8 mm
Digit/Alpha Size	0.32 in
Display Type	7-Segment
Millicandela Rating	13 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Size / Dimension [z]	5 mm
Size / Dimension [z]	0.197 in
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	643 nm

LDS-A3506 Series

DISPLAY 7SEG 0.32" SGL RED 10DIP

Part	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Common Pin	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Color	Display Type	Power Dissipation (Max) [Max]
Lumex Opto/Components Inc. LDS-A3506RD	10-DIP	10 mA	2 V	1	5 mm	11 mm	7 mm	0.197 in	0.433 in	0.276 in	643 nm	Common Anode	13 mcd	8 mm	0.32 in	Red	7-Segment	105 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.02
		40	$ 1.35
		120	$ 1.04
		1000	$ 0.81
		5000	$ 0.74
		10000	$ 0.73

Description

General part information

LDS-A3506 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 10mA 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) 10-DIP (0.209", 5.30mm)

Documents

Technical documentation and resources

No documents available
