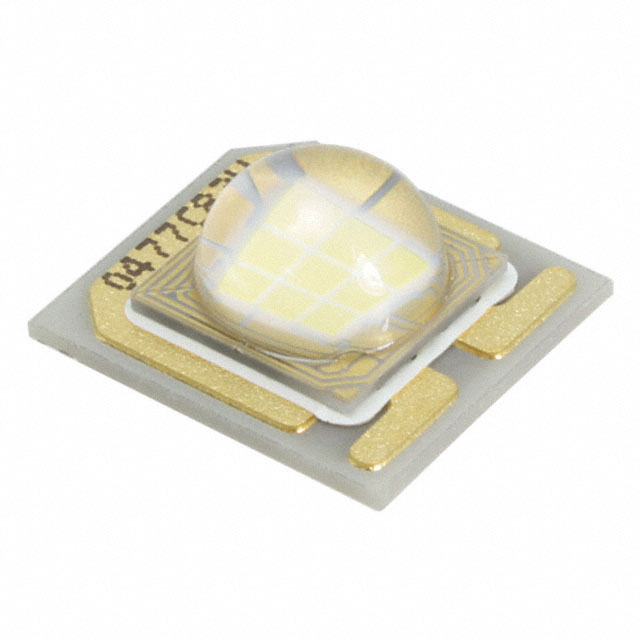

LXS8-PW30

Obsolete

Lumileds

LED MOD LUXEON S1000 WH SQ

Search across all available documentation for this part.

Obsolete

Lumileds

LED MOD LUXEON S1000 WH SQ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LXS8-PW30	LXS8-PW Series

CCT (K)	-	4000 K
Color	White, Warm	Neutral, White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80
Current - Max [Max]	900 mA	900 mA
Height [z]	6.09 mm	6.09 mm
Lens Type	Domed	Domed
Light Emitting Surface (LES) [diameter]	8.06 mm	8.06 mm
Lumens/Watt @ Current - Test	78 lm/W	78 - 81 lm/W
Luminous Flux @ Current/Temperature	1390 lm	1390 - 1450 lm
Size / Dimension [x]	13.87 mm	13.87 mm
Size / Dimension [y]	12.87 mm	12.87 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	105 °	105 °
Voltage - Forward (Vf) (Typ)	25.6 V	25.6 V

LED MOD LUXEON S1000 WH SQ

Part	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Configuration	CCT (K)	Viewing Angle	Temperature - Test	Voltage - Forward (Vf) (Typ)	Color	Height [z]	Luminous Flux @ Current/Temperature	Lens Type	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Type
Lumileds LXS8-PW40	12.87 mm	13.87 mm	80	Square	4000 K	105 °	85 °C	25.6 V	Neutral, White	6.09 mm	1450 lm	Domed	900 mA	8.06 mm	81 lm/W	LED Module
Lumileds LXS8-PW30	12.87 mm	13.87 mm	80	Square		105 °	85 °C	25.6 V	Warm, White	6.09 mm	1390 lm	Domed	900 mA	8.06 mm	78 lm/W	LED Module
