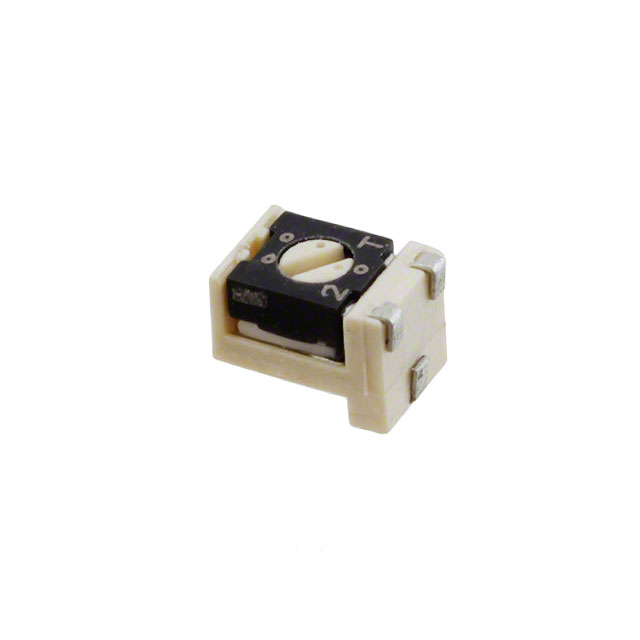

7813S-1-051E
ActiveBourns Inc.
SWITCH ROTARY DIP SPDT 0.1A 16V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7813S-1-051E
ActiveBourns Inc.
SWITCH ROTARY DIP SPDT 0.1A 16V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7813S-1-051E |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Height Above Board | 0.211 in |
| Height Above Board | 5.35 mm |
| Length [x] | 0.126 in |
| Length [x] | 3.2 mm |
| Mechanical Life | 50 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Termination Style | J Lead |
| Voltage Rating | 16 VAC/DC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 200 | $ 1.40 | |
Description
General part information
7813S Series
Dip Switch SPDT 2 Position Surface Mount, Right Angle Rotary for Tool Actuator 100mA 16VAC/DC
