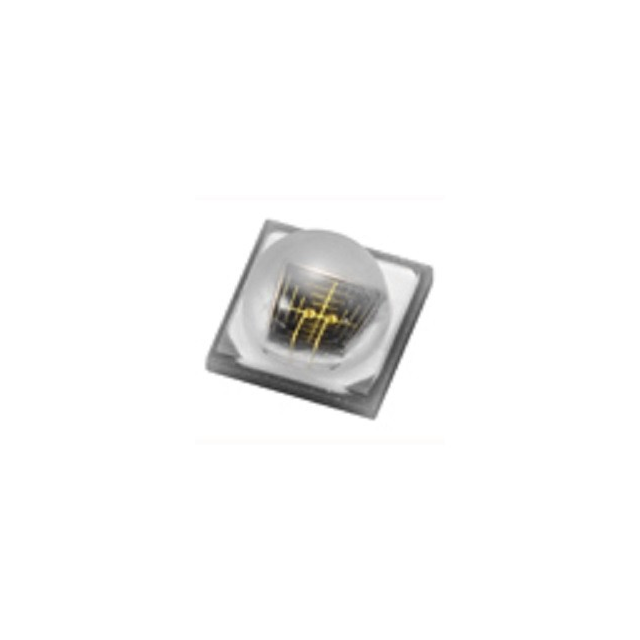

EAIST3535A1
ActiveEverlight Electronics Co Ltd
IR EMITTER - SMD 3535 - 940NM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAIST3535A1
ActiveEverlight Electronics Co Ltd
IR EMITTER - SMD 3535 - 940NM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAIST3535A1 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Radiant Intensity (Ie) Min @ If [Min] | 450 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle [custom] | 90 ° |
| Voltage - Forward (Vf) (Typ) | 3.7 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.07 | |
| 10 | $ 6.58 | |||
| 100 | $ 5.44 | |||
| Digi-Reel® | 1 | $ 9.07 | ||
| 10 | $ 6.58 | |||
| 100 | $ 5.44 | |||
| Tape & Reel (TR) | 400 | $ 4.57 | ||
| 800 | $ 4.41 | |||
| 1200 | $ 4.33 | |||
| 2000 | $ 4.29 | |||
Description
General part information
EAIST3535 Series
Infrared (IR) Emitter 940nm 3.7V 1A 450mW/sr @ 1A 90° 1414 (3535 Metric)
