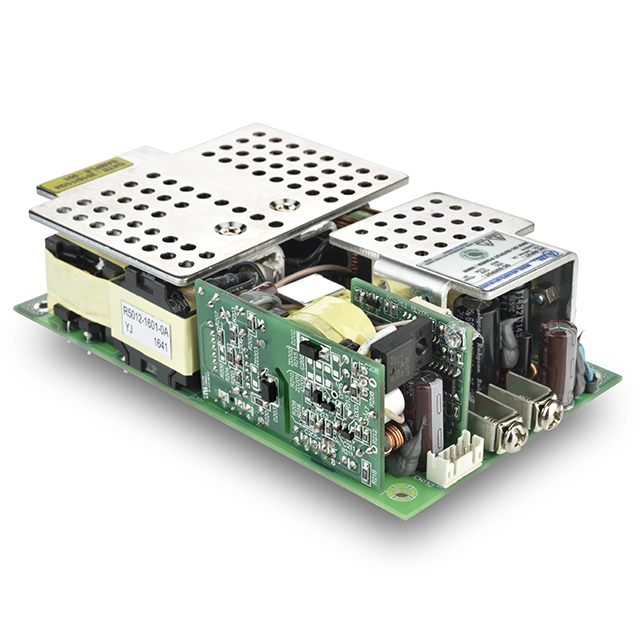

ARFS-3011M-1205

Active

Aras Power Technologies

AC/DC CONVERTER 12V 300W

Search across all available documentation for this part.

Active

Aras Power Technologies

AC/DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	ARFS-3011M-1205

Applications	ITE (Commercial), Medical
Current - Output 1	25 A
Efficiency	90 %
Features	Universal Input, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	300 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.4 "
Size / Dimension [z]	35.6 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 300W

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Applications	Voltage - Output 1	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Current - Output 1
Aras Power Technologies ARFS-3011M-1205	Chassis Mount	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm	Open Frame	ITE (Commercial), Medical	12 V		90 VAC	264 VAC	Standby Output, Universal Input	300 W	70 °C	0 °C	1	90 %	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
