9392 0601000

Active

Belden Inc.

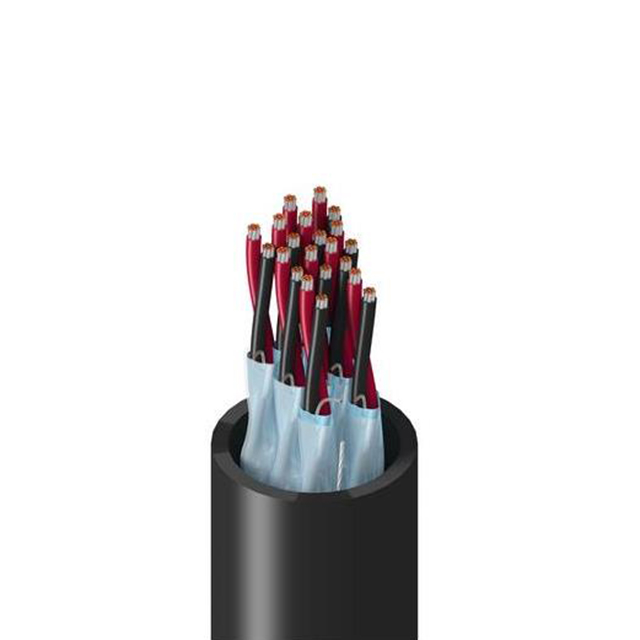

MULTI-PAIR 30COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 30COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9392 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Direct Burial, Ripcord, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	20.4 mm
Jacket (Insulation) Diameter [diameter]	0.803 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	30
Number of Conductors [custom]	15 pair
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket (Insulation) Material	Usage	Number of Conductors [custom]	Number of Conductors	Conductor Insulation	Ratings	Cable Type	Shield Coverage	Length	Length	Conductor Material	Features	Jacket Color	Wire Gauge
Belden Inc. 9392 0601000	Aluminum	1.6 mm	0.063 in	19	30 AWG	-30 ░C	105 ░C	20.4 mm	0.803 in	Foil	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	15 pair	30	Poly-Vinyl Chloride (PVC)	UL Style 2464	Multi-Pair	100 %	1000 ft	304.8 m	Copper Tinned	Direct Burial Drain Wire Ripcord UV Resistant	Chrome	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 37.23

General part information

30 (15 Pair) Conductor Multi-Pair Cable Chrome 18 AWG Foil 1000.0' (304.8m)
