MX47039NF2

Active

JAE Electronics

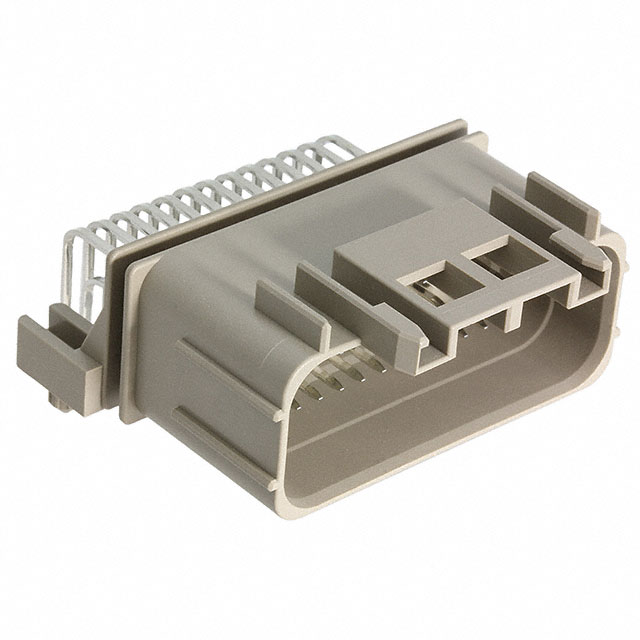

CONN HEADER R/A 39POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 39POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX47039NF2

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Gray
Insulation Height	0.76 in
Insulation Height	19.3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	3.6 mm
Row Spacing - Mating	0.142 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish - Post	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Style	Number of Positions Loaded	Insulation Material	Applications	Termination	Ingress Protection	Contact Type	Features	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Fastening Type	Contact Shape	Mounting Type	Number of Positions	Shrouding	Number of Rows	Insulation Color
JAE Electronics MX47039NF2	Brass	3.5 mm	0.138 in	0.76 in	19.3 mm	Tin	Header	125 °C	-40 °C	2.5 mm	0.098 in	Board to Cable/Wire	All	Polybutylene Terephthalate (PBT) Glass Filled	Automotive	Solder	Waterproof	Male Pin	Board Guide	3.6 mm	0.142 in	3 A	Latch Holder	Square	Through Hole Right Angle	39	Shrouded - 4 Wall	3	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	360	$ 17.56

General part information

Connector Header Through Hole, Right Angle 39 position 0.098" (2.50mm)
