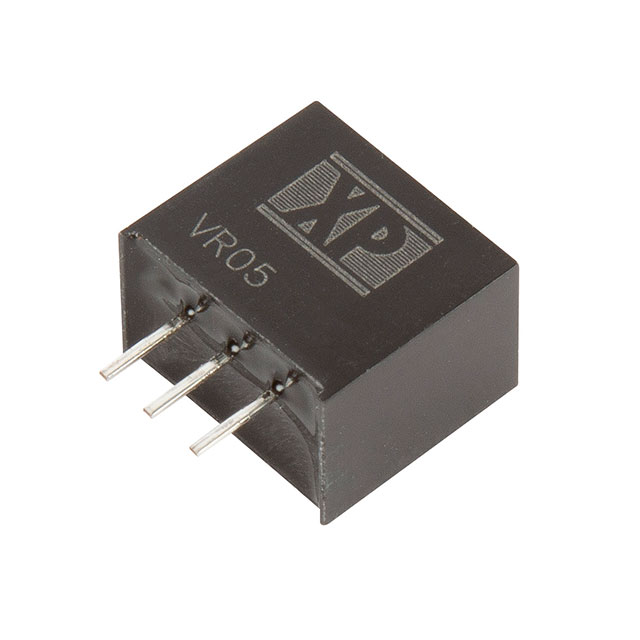

VR05S3V3

XP Power

DC DC CONVERTER 3.3V

Search across all available documentation for this part.

XP Power

DC DC CONVERTER 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	VR05S3V3

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	89 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Size / Dimension [x]	0.46 in
Size / Dimension [x]	11.6 mm
Size / Dimension [y]	7.6 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Output 1	3.3 V

DC DC CONVERTER 3.3V

Part	Type	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]
XP Power VR05S3V3	Linear Regulator Replacement	Through Hole	3.3 V	500 mA	85 °C	-40 °C	1	ITE (Commercial)	7.6 mm	0.46 in	11.6 mm	10.2 mm	0.4 "	0.3 "	3-SIP Module	36 V	89 %	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	43	$ 2.16

General part information

Linear Regulator Replacement DC DC Converter 1 Output 3.3V 500mA 4.75V - 36V Input
