8885MN 008100

Active

Belden Inc.

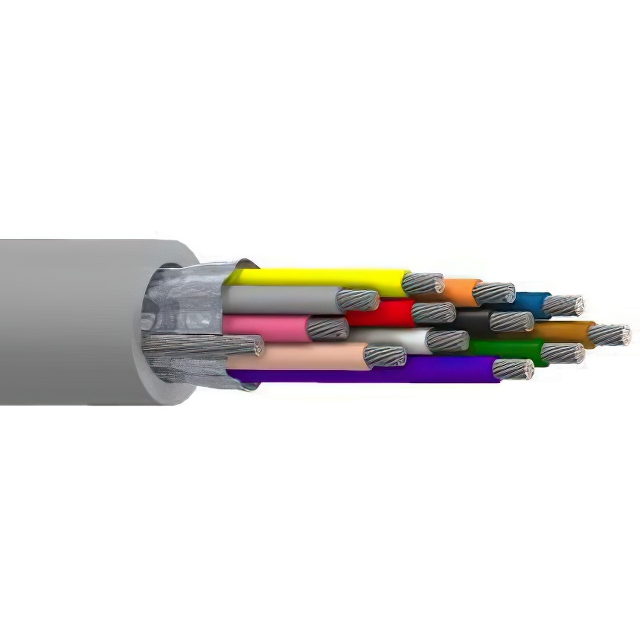

CABLE 12COND 22AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 22AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8885MN 008100

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Ratings	Usage	Conductor Strand [custom]	Conductor Strand	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Coverage	Conductor Material	Voltage	Wire Gauge	Jacket Color	Number of Conductors	Features	Jacket (Insulation) Material	Length	Length
Belden Inc. 8885MN 006100	30.5 m	100 ft	-20 C	80 C	Polypropylene (PP)	0.406 mm	0.016 in	Aluminum	UL Style 2937	Audio Control Instrumentation	19 Strands	34 AWG	Foil	6.2 mm	0.244 in	Multi-Conductor	100 %	Copper Tinned	300 V	22 AWG	Blue	12	Drain Wire	Poly-Vinyl Chloride (PVC)
Belden Inc. 8885MN 008100	30.5 m	100 ft	-20 C	80 C	Polypropylene (PP)	0.406 mm	0.016 in	Aluminum		Audio Control Instrumentation	19 Strands	34 AWG	Foil	6.2 mm	0.244 in	Multi-Conductor	100 %	Copper Tinned		22 AWG	Gray	12	Drain Wire	Poly-Vinyl Chloride (PVC)
Belden Inc. 8885MN 0061000			-20 C	80 C	Polypropylene (PP)	0.406 mm	0.016 in	Aluminum	UL Style 2937	Audio Control Instrumentation	19 Strands	34 AWG	Foil	6.2 mm	0.244 in	Multi-Conductor	100 %	Copper Tinned	300 V	22 AWG	Blue	12	Drain Wire	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Gray 22 AWG Foil 100.0' (30.5m)
