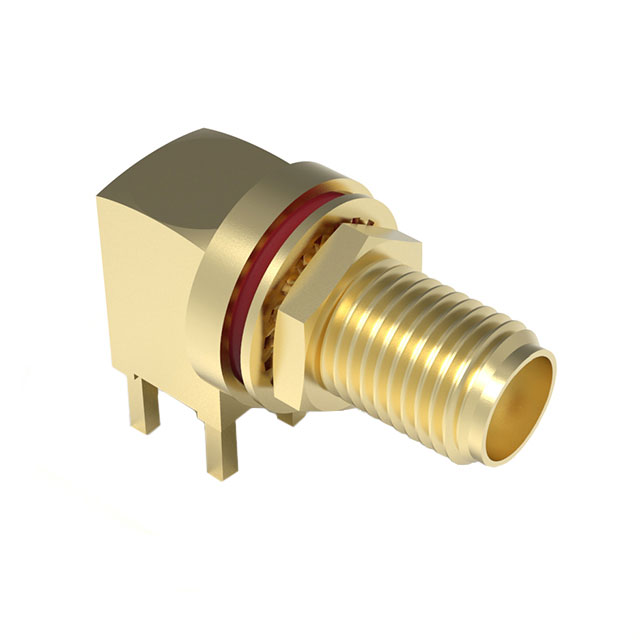

RFPC-SMA14-FN-A
ActiveGCT
SMA PCB MOUNT RIGHT ANGLE BULKHE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RFPC-SMA14-FN-A |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.06 | |
| 10 | $ 13.91 | |||
| 25 | $ 13.19 | |||
| 40 | $ 13.00 | |||
| 160 | $ 11.47 | |||
| 320 | $ 10.70 | |||
| 480 | $ 10.47 | |||
| 960 | $ 9.94 | |||
Description
General part information
RFPC-SMA Series
SMA Connector Jack, Female Socket Panel Mount, Through Hole, Right Angle Solder
