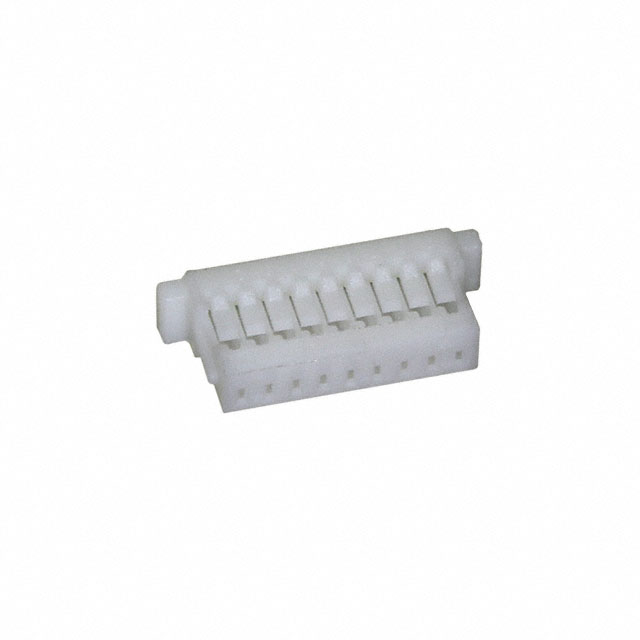

10147603-00009LF
ActiveAmphenol ICC (FCI)
CONN RCPT HSG 9POS 1.00MM
Deep-Dive with AI
Search across all available documentation for this part.
10147603-00009LF
ActiveAmphenol ICC (FCI)
CONN RCPT HSG 9POS 1.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10147603-00009LF |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10000 | $ 0.12 | |
Description
General part information
10147603 Series
9 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
