FVG.2W.310.CLAC75

Active

LEMO

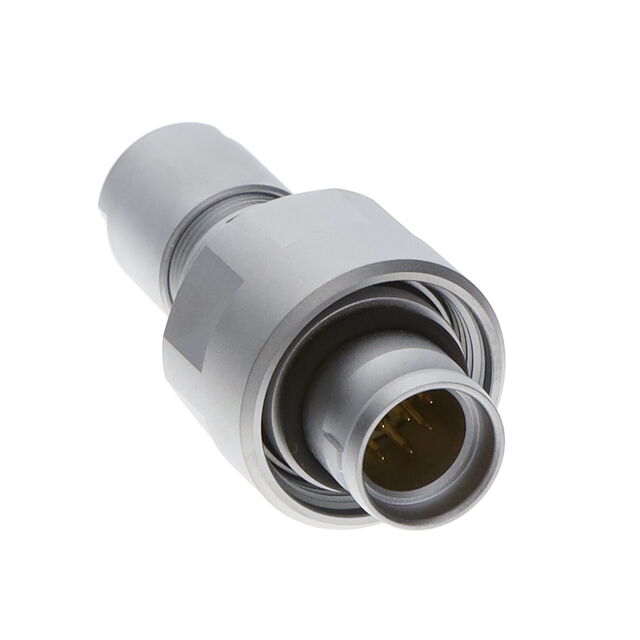

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FVG.2W.310.CLAC75

Active

LEMO

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 135.64
		10	$ 124.47
		25	$ 119.68
		50	$ 115.70

Description

General part information

FVG.2W Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FVG.2W.310.CLAC75	FVG.2W Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.201 - 0.335 in
Cable Opening	-	5.1 - 8.5 mm
Cable Opening	-	5.5 mm
Cable Opening	-	7 mm
Cable Opening [Max] [custom]	0.295 in	0.276 - 0.295 in
Cable Opening [Max] [custom]	7.5 mm	7.5 mm
Cable Opening [Min] [custom]	0.28 in	0.26 - 0.28 in
Cable Opening [Min] [custom]	7.1 mm	6.6 - 7.1 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	8 A	2 - 30 A
Features	Coupling Nut, Backshell	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	2 - 26
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	302 - 326
Shielding	Shielded	Shielded

FVG.2W Series

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Shielding	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Material	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Number of Positions	Shell Finish	Orientation	Primary Material	Current Rating (Amps)	Mounting Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Contact Finish - Mating	Material Flammability Rating	Connector Type	Insert Material	Color	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]
LEMO FVG.2W.302.CLAC75	Shielded	302	-20 C	200 °C	Brass	Brass	Brass, Chrome	0.28 in	7.1 mm	0.295 in	7.5 mm	2	Chrome	G	Metal	30 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver
LEMO FVG.2W.304.CLAC60Z	Shielded	304	-20 C	200 °C	Brass	Brass	Brass, Chrome					4	Chrome	G	Metal	15 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver	0.22 in, 0.236 in	5.6 mm, 6 mm
LEMO FVG.2W.319.CLAC75	Shielded	319	-20 C	200 °C	Brass	Brass	Brass, Chrome	0.28 in	7.1 mm	0.295 in	7.5 mm	19	Chrome	G	Metal	5 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver
LEMO FVG.2W.318.CLAC85	Shielded	318	-20 C	200 °C	Brass	Brass	Brass, Chrome					18	Chrome	G	Metal	5.5 Amps	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver	0.319 in, 0.335 in	8.1 mm, 8.5 mm
LEMO FVG.2W.310.CLAC75	Shielded	310	-20 C	200 °C	Brass	Brass	Brass, Chrome	0.28 in	7.1 mm	0.295 in	7.5 mm	10	Chrome	G	Metal	8 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver
LEMO FVG.2W.306.CLAC15	Shielded	306	-20 C	200 °C	Brass	Brass	Brass, Chrome					6	Chrome	G	Metal		Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver
LEMO FVG.2W.308.CLAC55	Shielded	308	-20 C	200 °C	Brass	Brass	Brass, Chrome					8	Chrome	G	Metal	10 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver	0.201 in, 0.217 in	5.1 mm	5.5 mm
LEMO FVG.2W.326.CLAC70	Shielded	326	-20 C	200 °C	Brass	Brass	Brass, Chrome	0.26 in	6.6 mm	0.276 in		26	Chrome	G	Metal	2 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver				7 mm
LEMO FVG.2W.310.CLAC85	Shielded	310	-20 C	200 °C	Brass	Brass	Brass, Chrome					10	Chrome	G	Metal	8 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver	0.319 in, 0.335 in	8.1 mm, 8.5 mm
LEMO FVG.2W.314.CLAK95	Shielded	314	-20 C	200 °C	Brass	Brass	Brass, Chrome					14	Chrome	G	Metal	6.5 A	Free Hanging (In-Line)	Backshell, Coupling Nut	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Gold	UL94 V-0	Male Pins, Plug	Polyetheretherketone (PEEK)	Silver
