9WV0812M1001

Active

Sanyo Denki America Inc.

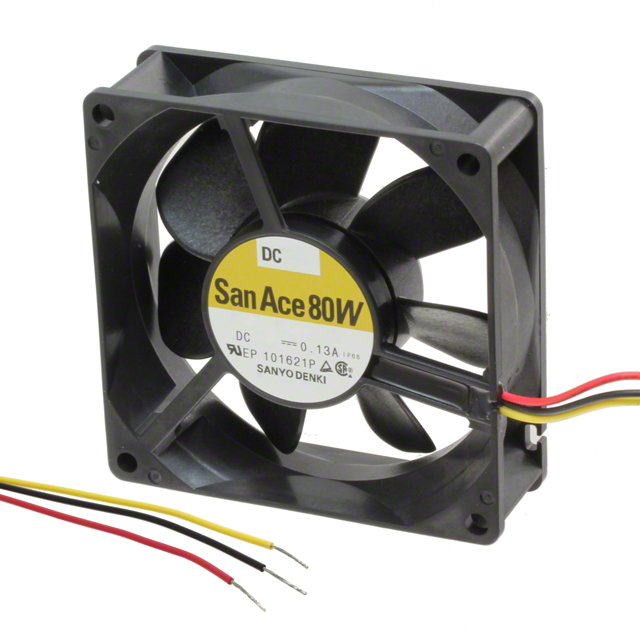

FAN AXIAL 80X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 80X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WV0812M1001	9WV0812 Series

Air Flow	80.9 CFM	80.9 CFM
Air Flow	2.27 m³/min	2.27 m³/min
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	750 mA	750 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	Varies Based on Temperature	Varies Based on Temperature
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	51 dB(A)	51 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	9 W	9 W
RPM	6000 RPM	6000 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	169.4 Pa	169.4 Pa
Static Pressure	0.68 in H2O	0.68 in H2O
Termination	3 Wire Leads	3 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	10.2 VDC	10.2 VDC
Weight	0.518 lb	0.518 lb
Weight	234.96 g	234.96 g
Width [y]	38 mm	38 mm

FAN AXIAL 80X38MM 12VDC WIRE

Part	Static Pressure	Static Pressure	Material - Frame	RPM	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Voltage - Rated	Termination	Lifetime @ Temp.	Air Flow	Air Flow	Current Rating (Amps)	Noise	Material - Blade	Bearing Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Approval Agency	Ingress Protection	Features
Sanyo Denki America Inc. 9WV0812M1D001	169.4 Pa	0.68 in H2O	Plastic	6000 RPM	Tubeaxial	10.2 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	38 mm	12 VDC	3 Wire Leads	Varies Based on Temperature	80.9 CFM	2.27 m³/min	750 mA	51 dB(A)	Plastic	Ball	0.518 lb	234.96 g	80 mm	80 mm	9 W	CSA, TUV, UL	IP68 - Dust Tight, Waterproof	Locked Rotor Sensor
Sanyo Denki America Inc. 9WV0812M1001	169.4 Pa	0.68 in H2O	Plastic	6000 RPM	Tubeaxial	10.2 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	38 mm	12 VDC	3 Wire Leads	Varies Based on Temperature	80.9 CFM	2.27 m³/min	750 mA	51 dB(A)	Plastic	Ball	0.518 lb	234.96 g	80 mm	80 mm	9 W	CSA, TUV, UL	IP68 - Dust Tight, Waterproof	Locked Rotor Protection, Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	27	$ 49.93

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 80.9 CFM (2.27m³/min) 3 Wire Leads
