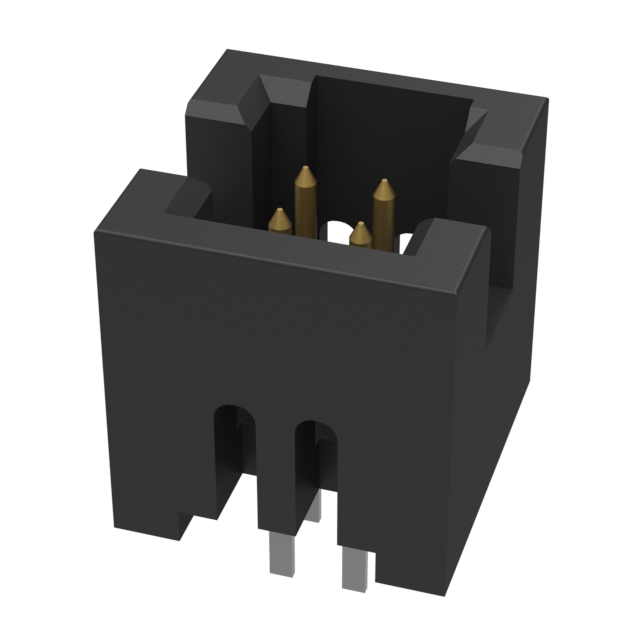

TFC-102-01-F-D

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

TFC-102-01-F-D

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-102-01-F-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Length - Post [x]	0.078 in
Contact Length - Post [x]	1.98 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFC-102 Series

Part	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Voltage Rating	Contact Material	Number of Rows	Number of Positions	Current Rating (Amps)	Insulation Material	Connector Type	Contact Length - Post [x]	Contact Length - Post	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Fastening Type	Features	Contact Length - Post [x]
Samtec Inc. TFC-102-01-F-D-RA	Through Hole Right Angle	3.61 mm	0.142 in	Tin	Black	3 µin	0.076 µm	Board to Board Cable	Gold	-55 °C	125 °C	UL94 V-0	All	275 VAC	Phosphor Bronze	2	4	3.1 A	Liquid Crystal Polymer (LCP)	Header	0.075 in	1.91 mm	Shrouded - 4 Wall	Solder	0.05 in	1.27 mm	5.6 mm	0.22 in	Square	0.05 in	1.27 mm	Male Pin	Push-Pull
Samtec Inc. TFC-102-02-F-D-A	Surface Mount	3.33 mm	0.131 in	Tin	Black	3 µin	0.076 µm	Board to Board Cable	Gold	-55 °C	125 °C	UL94 V-0	All	275 VAC	Phosphor Bronze	2	4	3.1 A	Liquid Crystal Polymer (LCP)	Header			Shrouded - 4 Wall	Solder	0.05 in	1.27 mm	5.74 mm	0.226 in	Square	0.05 in	1.27 mm	Male Pin	Push-Pull	Board Guide
Samtec Inc. TFC-102-02-F-D	Surface Mount	3.33 mm	0.131 in	Tin	Black	3 µin	0.076 µm	Board to Board Cable	Gold	-55 °C	125 °C	UL94 V-0	All	275 VAC	Phosphor Bronze	2	4	3.1 A	Liquid Crystal Polymer (LCP)	Header			Shrouded - 4 Wall	Solder	0.05 in	1.27 mm	5.74 mm	0.226 in	Square	0.05 in	1.27 mm	Male Pin	Push-Pull
Samtec Inc. TFC-102-01-F-D	Through Hole	3.33 mm	0.131 in	Tin	Black	3 µin	0.076 µm	Board to Board Cable	Gold	-55 °C	125 °C	UL94 V-0	All	275 VAC	Phosphor Bronze	2	4	3.1 A	Liquid Crystal Polymer (LCP)	Header	0.078 in		Shrouded - 4 Wall	Solder	0.05 in	1.27 mm	5.6 mm	0.22 in	Square	0.05 in	1.27 mm	Male Pin	Push-Pull		1.98 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.91

Description

General part information

TFC-102 Series

Connector Header Through Hole 4 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
