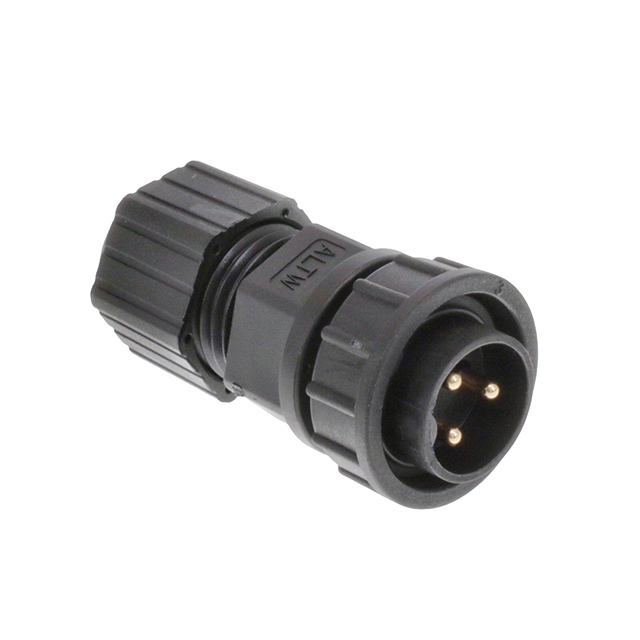

DC-03BFMB-LL7001

Active

Amphenol LTW

CIRCULAR LARGE SIZE FIELD INSTAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC-03BFMB-LL7001

Active

Amphenol LTW

CIRCULAR LARGE SIZE FIELD INSTAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC-03BFMB-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	10.8 mm
Cable Opening [Max] [custom]	0.425 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Screw

DC-03BFMB Series

Part	Features	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Contact Finish - Mating	Ingress Protection	Shielding	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Primary Material	Orientation	Contact Material	Termination	Color	Current Rating (Amps)	Connector Type	Insert Material	Shell Material	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Fastening Type
Amphenol LTW DC-03BFMB-SL7001	Backshell Coupling Nut	Free Hanging (In-Line)	D	-40 °C	105 ░C	Nylon Polyamide (PA)	Gold	IP67 - Dust Tight Waterproof	Unshielded	0.217 in	5.5 mm	10.8 mm	0.425 in	Plastic	Keyed	Copper Alloy	Screw	Black	20 A	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)
Amphenol LTW DC-03BFMB-QL8MPP	Backshell	Free Hanging (In-Line)	D	-40 °C	105 ░C	Thermoplastic	Silver	IP68 - Dust Tight Waterproof	Unshielded					Plastic	Keyed	Copper Alloy	Screw	Black	20 A	Male Pins Plug	Thermoplastic		300 VDC	10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW DC-03BFMB-QL8LPP	Backshell	Free Hanging (In-Line)	D	-40 °C	105 ░C	Thermoplastic	Silver	IP68 - Dust Tight Waterproof	Unshielded	0.472 in	12 mm	14 mm	0.551 in	Plastic	Keyed	Copper Alloy	Screw	Black	20 A	Male Pins Plug	Thermoplastic		300 VDC
Amphenol LTW DC-03BFMB-LL7001	Backshell Coupling Nut	Free Hanging (In-Line)	D	-40 °C	105 ░C	Nylon Polyamide (PA)	Gold	IP67 - Dust Tight Waterproof	Unshielded	0.217 in	5.5 mm	10.8 mm	0.425 in	Plastic	Keyed	Copper Alloy	Screw	Black	20 A	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)				Bayonet Lock
Amphenol LTW DC-03BFMB-QL8SPP	Backshell	Free Hanging (In-Line)	D	-40 °C	105 ░C	Thermoplastic	Silver	IP68 - Dust Tight Waterproof	Unshielded	0.315 in	8 mm	10 mm	0.394 in	Plastic	Keyed	Copper Alloy	Screw	Black	20 A	Male Pins Plug	Thermoplastic		300 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.70
		10	$ 10.14
		30	$ 9.81

Description

General part information

DC-03BFMB Series

3 Position Circular Connector Plug, Male Pins Screw
