Q-2U0510001048I

Active

Amphenol Custom Cable

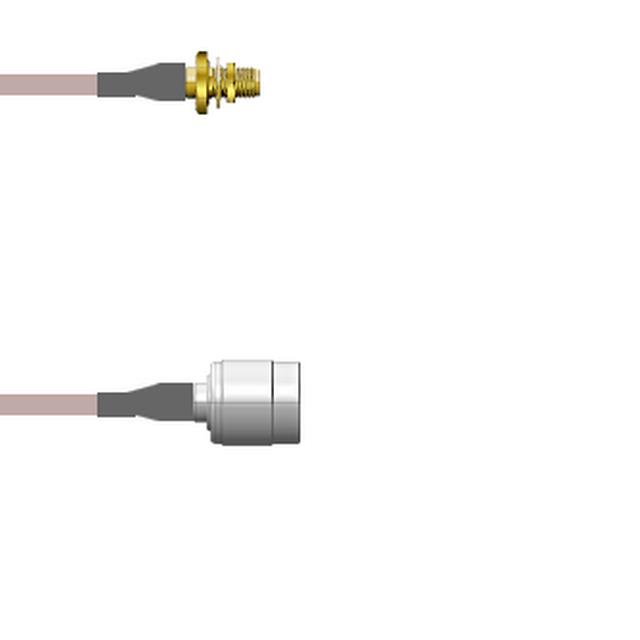

COAX CABLE SMA TO TNC 4'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO TNC 4'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2U0510001048I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	Overall Impedance	Color	Cable Impedance	Style	2nd Connector	Features	2nd Contact Gender	1st Connector Mounting Type	1st Connector	1st Contact Gender	Connector Impedance	Cable Type	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Feature	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2U0510001084I	50 Ohms	Copper	50 Ohms	SMA to TNC	TNC Plug	Shielded	Male	Panel Mount	SMA Jack	Female	50 Ohms	RG-178	3 GHz	84 in	2.1 m	7 ft	Bulkhead - Front Side Nut	Free Hanging (In-Line)
Amphenol Custom Cable Q-2U0510001018I	50 Ohms	Copper	50 Ohms	SMA to TNC	TNC Plug	Shielded	Male	Panel Mount	SMA Jack	Female	50 Ohms	RG-178	3 GHz				Bulkhead - Front Side Nut	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2U0510001002M	50 Ohms	Copper	50 Ohms	SMA to TNC	TNC Plug	Shielded	Male	Panel Mount	SMA Jack	Female	50 Ohms	RG-178	3 GHz	78.7 in	2 m	6.6 ft	Bulkhead - Front Side Nut	Free Hanging (In-Line)
Amphenol Custom Cable Q-2U0510001001M	50 Ohms	Copper	50 Ohms	SMA to TNC	TNC Plug	Shielded	Male	Panel Mount	SMA Jack	Female	50 Ohms	RG-178	3 GHz	39.4 in	1 m	3.3 ft	Bulkhead - Front Side Nut	Free Hanging (In-Line)
Amphenol Custom Cable Q-2U0510001048I	50 Ohms	Copper	50 Ohms	SMA to TNC	TNC Plug	Shielded	Male	Panel Mount	SMA Jack	Female	50 Ohms	RG-178	3 GHz	48 in	1200 mm	4 ft	Bulkhead - Front Side Nut	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-178 48.0" (1.2m) 4.0'
