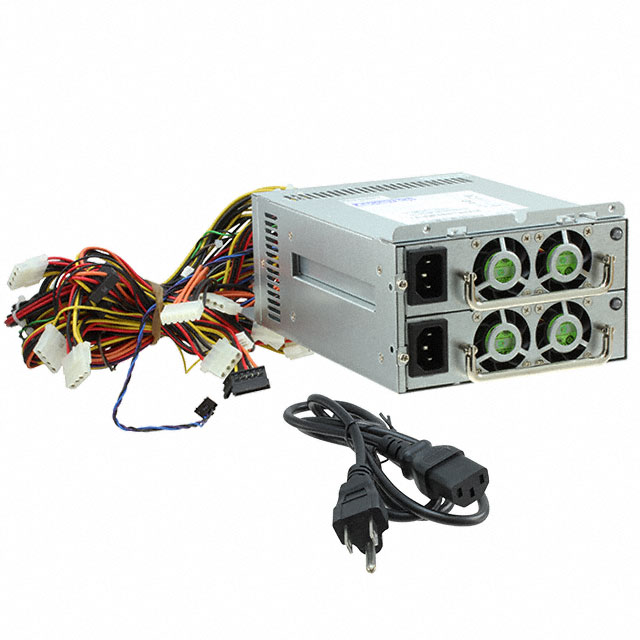

RPS8-750ATX-XE
ActiveAdvantech Corp
AC/DC CNVT 3.3V 5V +/-12V 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPS8-750ATX-XE
ActiveAdvantech Corp
AC/DC CNVT 3.3V 5V +/-12V 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPS8-750ATX-XE |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CCC, CB, TUV, cUL, CE |
| Current - Output 1 | 24 A |
| Current - Output 2 | 30 A |
| Current - Output 3 | 60.9 A |
| Current - Output 4 | 500 mA |
| Current - Output 5 | 4 A |
| Efficiency | 80 % |
| Features | PMBus™, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 750 W |
| Size / Dimension [x] | 200 mm |
| Size / Dimension [x] | 7.87 in |
| Size / Dimension [y] | 5.91 in |
| Size / Dimension [y] | 150 mm |
| Size / Dimension [z] | 3.31 in |
| Size / Dimension [z] | 84 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 5 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1185.84 | |
Description
General part information
RPS8-750 Series
Enclosed AC DC Converters 5 Output 3.3V 5V 12V -12V 100 ~ 240 VAC Input
