M3AAK-2006R

Active

IDC CABLE - MSC20K/MC20M/MSC20K

Search across all available documentation for this part.

Active

IDC CABLE - MSC20K/MC20M/MSC20K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

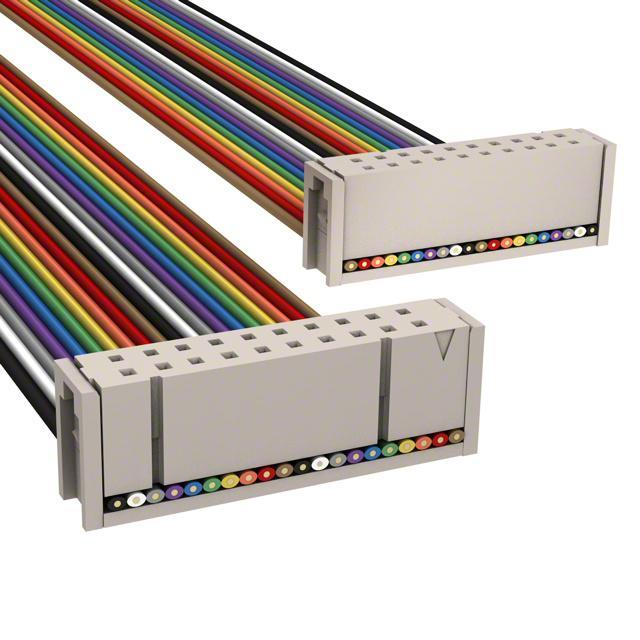

20 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M3AAK-2006R	M3AAK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.67 - 5 ft
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Number of Positions	20	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

IDC CABLE - MSC34K/MC34M/MSC34K

Part	Connector Type	Number of Rows	Cable Termination	Number of Positions	Shielding	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Color	Contact Finish	Length	Length [x]	Length [x]	Number of Positions
3M M3AAK-3406R	Socket to Socket	2	IDC	34	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	Multiple, Ribbon	Gold
3M M3AAK-1020K	Socket to Socket	2	IDC	10	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	508 mm			Multiple, Twisted Pair (Flat)	Gold	1.67 ft
3M M3AAK-2606J	Socket to Socket	2	IDC	26	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '		Gold
3M M3AAK-2006R	Socket to Socket	2	IDC	20	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	Multiple, Ribbon	Gold
3M M3AAK-1436J	Socket to Socket	2	IDC	14	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin					Gold		3 ft	914.4 mm
3M M3AAK-2618J	Socket to Socket	2	IDC	26	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin					Gold		1.5 ft	457.2 mm
3M M3AAK-1640K	Socket to Socket	2	IDC		Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin				Multiple, Twisted Pair (Flat)	Gold		3.34 ft	1.02 m	16
3M M3AAK-2618R	Socket to Socket	2	IDC	26	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin				Multiple, Ribbon	Gold		1.5 ft	457.2 mm
3M M3AAK-2660K	Socket to Socket	2	IDC	26	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	1.52 m			Multiple, Twisted Pair (Flat)	Gold	5 '
3M M3AAK-6006J	Socket to Socket	2	IDC	60	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '		Gold
