TE Connectivity Raychem Cable Protection

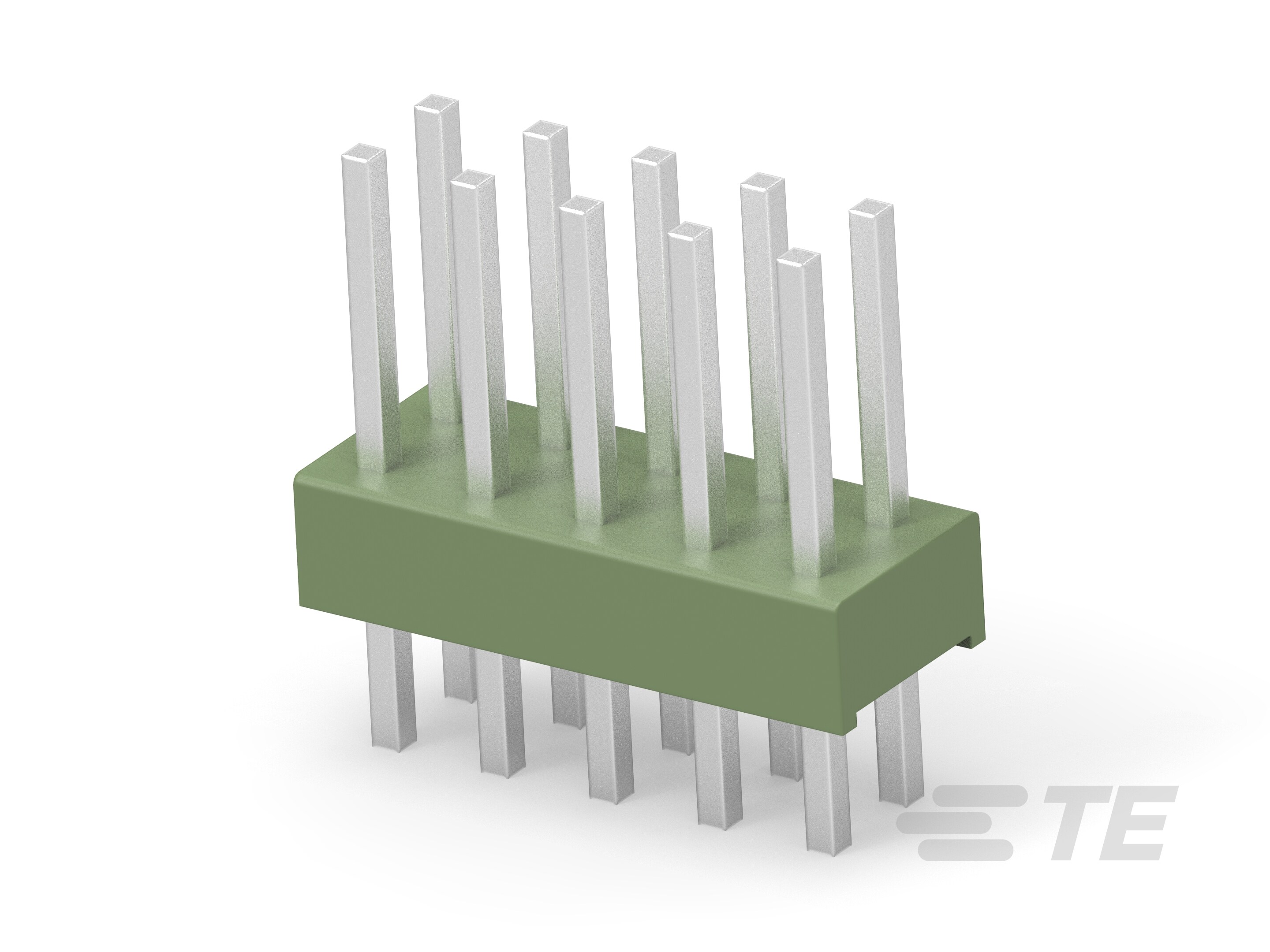

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Connectors, Interconnects

826925-5

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	826925-5

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	12.7 mm
Overall Contact Length	0.5 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

826925 Series

Part	Material Flammability Rating	Number of Positions	Number of Rows	Number of Positions Loaded	Style	Insulation Material	Mounting Type	Shrouding	Contact Length - Post	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Connector Type	Contact Material	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Number of Positions
TE Connectivity Raychem Cable Protection 826925-8	UL94 V-0	16	2	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	Through Hole	Unshrouded	3.2 mm	0.126 in	12.7 mm	0.5 "	Breakaway Header	Copper Alloy	Square	Push-Pull	-65 ░C	105 ░C	6.7 mm	0.264 in	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	5 A	78.7 µin	2 µm	Solder	Green	2 çm	78.7 çin	Male Pin
TE Connectivity Raychem Cable Protection 3-826925-6	UL94 V-0		2	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	Through Hole	Unshrouded	3.2 mm	0.126 in	12.7 mm	0.5 "	Breakaway Header	Copper Alloy	Square	Push-Pull	-65 ░C	105 ░C	6.7 mm	0.264 in	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	5 A	78.7 µin	2 µm	Solder	Green	2 çm	78.7 çin	Male Pin	72
TE Connectivity Raychem Cable Protection 2-826925-0	UL94 V-0		2	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	Through Hole	Unshrouded	3.2 mm	0.126 in	12.7 mm	0.5 "	Breakaway Header	Copper Alloy	Square	Push-Pull	-65 ░C	105 ░C	6.7 mm	0.264 in	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	5 A	78.7 µin	2 µm	Solder	Green	2 çm	78.7 çin	Male Pin	40
TE Connectivity Raychem Cable Protection 826925-5	UL94 V-0		2	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	Through Hole	Unshrouded	3.2 mm	0.126 in	12.7 mm	0.5 "	Breakaway Header	Copper Alloy	Square	Push-Pull	-65 ░C	105 ░C	6.7 mm	0.264 in	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	5 A	78.7 µin	2 µm	Solder	Green	2 çm	78.7 çin	Male Pin	10
