R1287Z009F-E2-F
ActiveNisshinbo Micro Devices Inc

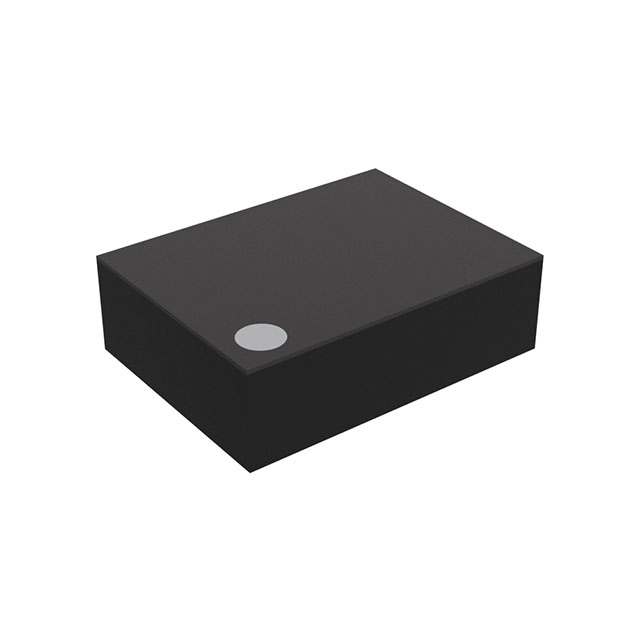

IC REG BUCK BST 200MA DL 12WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R1287Z009F-E2-F
ActiveNisshinbo Micro Devices Inc
IC REG BUCK BST 200MA DL 12WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R1287Z009F-E2-F |
|---|---|
| Current - Output | 200 mA |
| Frequency - Switching | 1 MHz |
| Function | Step-Up/Inverted |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive and Negative |
| Output Type | 1.81 mOhm |
| Package / Case | WLCSP, 12-VFBGA |
| Supplier Device Package | WLCSP-12-P1 |
| Synchronous Rectifier | True |
| Topology | Boost, Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | -5.1 V, 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.98 | |
| 8000 | $ 0.95 | |||
Description
General part information
R1287 Series
Buck, Boost Switching Regulator IC Positive and Negative Fixed -5.1V, 5.1V 2 Output 200mA 12-VFBGA, WLCSP
