Q-2O04M000D024i

Active

Amphenol Custom Cable

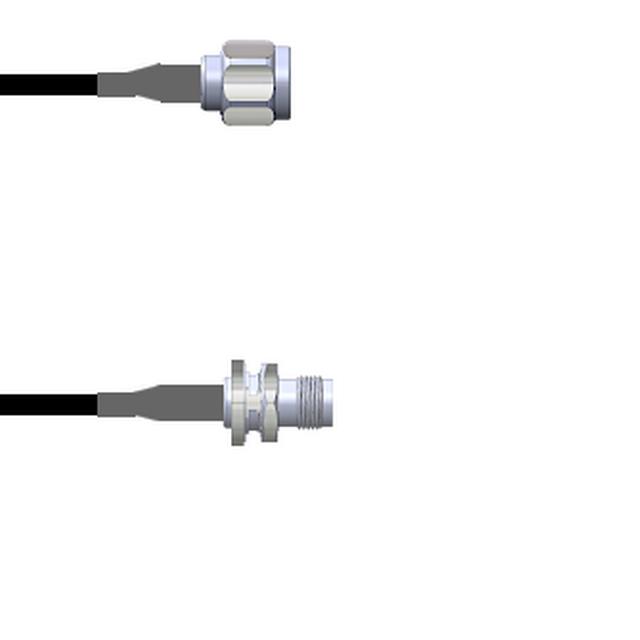

CBL ASSY NTYPE-TNC PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2O04M000D024i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2O04M000D024i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms

Q-2O04M0 Series

Part	2nd Connector	1st Contact Gender	2nd Contact Gender	Color	2nd Connector Mounting Feature	1st Connector Mounting Type	2nd Connector Mounting Type	Features	Overall Impedance	Frequency - Max [Max]	Length [x]	Length [x]	Cable Type	Length	Length	Length
Amphenol Custom Cable Q-2O04M000D018i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz	457.2 mm	457.2 mm	LMR 195
Amphenol Custom Cable Q-2O04M000D001M	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-2O04M000D002M	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-2O04M000D048i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-2O04M000D009i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	228.6 mm		9 "
Amphenol Custom Cable Q-2O04M000D024i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	609.6 mm		24 "
Amphenol Custom Cable Q-2O04M000D036i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	91.44 cm		36 in
Amphenol Custom Cable Q-2O04M000D006i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	152.4 mm		6 in
Amphenol Custom Cable Q-2O04M000D060i	TNC Jack	Male	Female	Black	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	6000 MHz			LMR 195	1.5 m	5 ft	5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.14
		25	$ 70.76
		50	$ 69.38
		100	$ 68.00
		250	$ 66.61

Description

General part information

Q-2O04M0 Series

Cable Assembly Coaxial N-Type to TNC LMR 195 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
