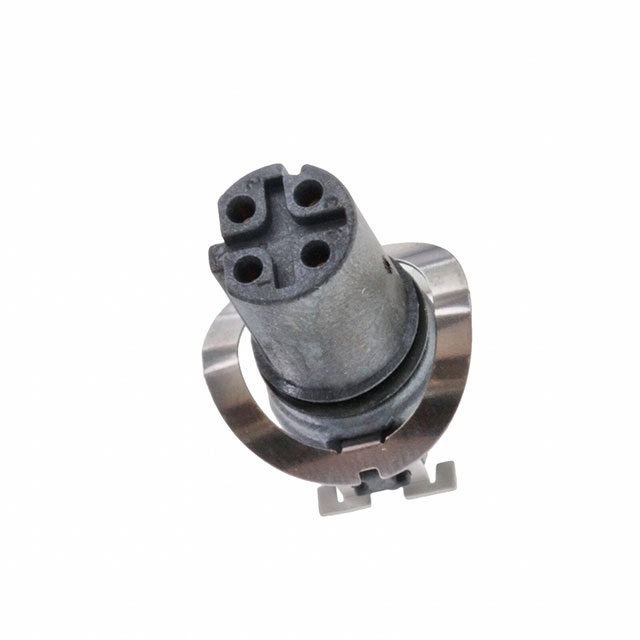

MSDS-04PFFT-EE0001
ActiveAmphenol LTW
CONN FMALE INSERT 4P GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSDS-04PFFT-EE0001
ActiveAmphenol LTW
CONN FMALE INSERT 4P GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSDS-04PFFT-EE0001 |
|---|---|
| Applications | Industrial Automation |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Ground |
| Ingress Protection | IP68, IP65 |
| Insert Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.13 | |
| 10 | $ 4.65 | |||
| 25 | $ 4.41 | |||
| 50 | $ 4.31 | |||
| Digi-Reel® | 1 | $ 5.13 | ||
| 10 | $ 4.65 | |||
| 25 | $ 4.41 | |||
| 50 | $ 4.31 | |||
| Tape & Reel (TR) | 100 | $ 4.10 | ||
| 300 | $ 3.59 | |||
| 500 | $ 3.49 | |||
| 1000 | $ 2.97 | |||
| 2500 | $ 2.77 | |||
Description
General part information
MSDS-04PFFT Series
4 Position Circular Connector Insert, Female Sockets Solder
