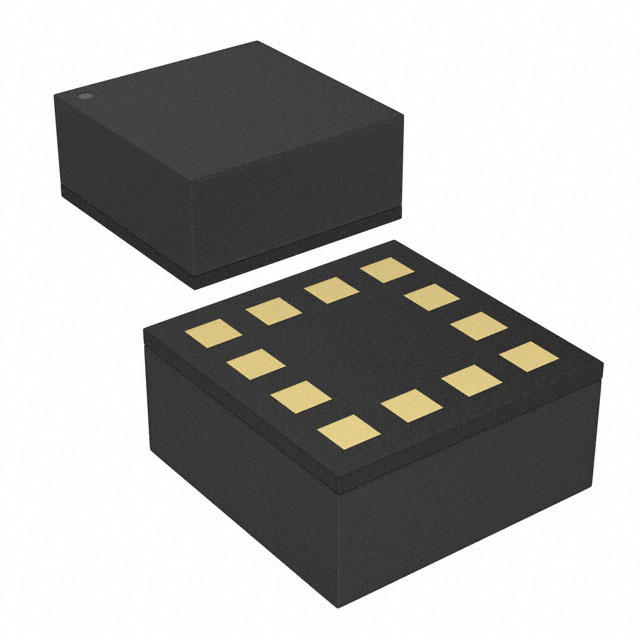

BMC156

Obsolete

Bosch Sensortec

IMU ACCEL/MAG I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

IMU ACCEL/MAG I2C/SPI 12LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMC156	BMC156 Series

Contents	-	Board(s)
Function	-	Accelerometer, Magnetometer
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	12-VFLGA Module	12-VFLGA Module
Sensor Type	6 Axis, Accelerometer, Magnetometer	6 Axis, Accelerometer, Magnetometer
Supplier Device Package	12-LGA (2.2x2.2)	12-LGA (2.2x2.2)
Type	-	Sensor
Utilized IC / Part	-	BMC156

SHUTTLE BOARD BMC156

Part	Type	Function	Contents	Utilized IC / Part	Sensor Type	Package / Case	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
Bosch Sensortec BMC156-SHUTL	Sensor	Accelerometer, Magnetometer	Board(s)	BMC156
Bosch Sensortec BMC156					6 Axis, Accelerometer, Magnetometer	12-VFLGA Module	I2C, SPI	Surface Mount	85 °C	-40 °C	12-LGA (2.2x2.2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Magnetometer, 6 Axis Sensor I2C, SPI Output

Technical documentation and resources

No documents available
