SRN.M13.GLL.6GZ

Active

LEMO

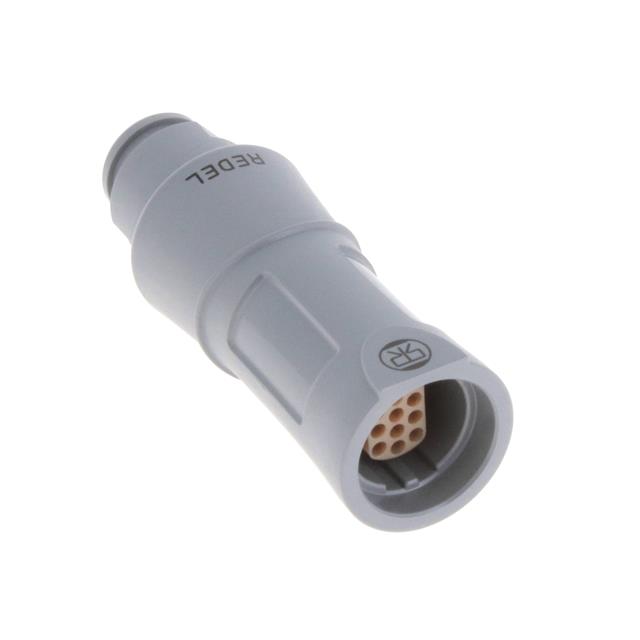

CONN RCPT FMALE 13P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRN.M13.GLL.6GZ

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	N
Primary Material	Plastic
Shell Material	Sulfone
Shell Size - Insert	M13
Shielding	Unshielded

CONN RCPT FMALE 13P SOLDER CUP

Part	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Features	Shell Material	Insert Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Mounting Type	Backshell Material, Plating	Number of Positions	Applications	Color	Ingress Protection	Primary Material	Orientation	Shielding	Current Rating (Amps)
LEMO SRN.M13.GLL.6GZ	Push-Pull	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Receptacle, Female Sockets	Backshell	Sulfone	Polyetheretherketone (PEEK)	Gold	-50 °C	170 °C	M13	Free Hanging (In-Line)	Sulfone	13	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray	IP50	Plastic	N	Unshielded	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Circular Connector Receptacle, Female Sockets Solder Cup
