Technical Specifications
Parameters and characteristics for this part
| Specification | CWSB11AAH |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 6 A |
| Electrical Life | 10000 Cycles |
| Features | Audible Click |
| Mechanical Life | 30000 Steps |
| Mounting Type | Snap-In, Right Angle, Panel Mount |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | PC Pin |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.43 | |
| 10 | $ 3.83 | |||
| 25 | $ 3.61 | |||
| 50 | $ 3.45 | |||
| 100 | $ 3.30 | |||
| 250 | $ 3.11 | |||
| 500 | $ 2.98 | |||
| 1000 | $ 2.85 | |||
Description
General part information
CWSB11AA Series

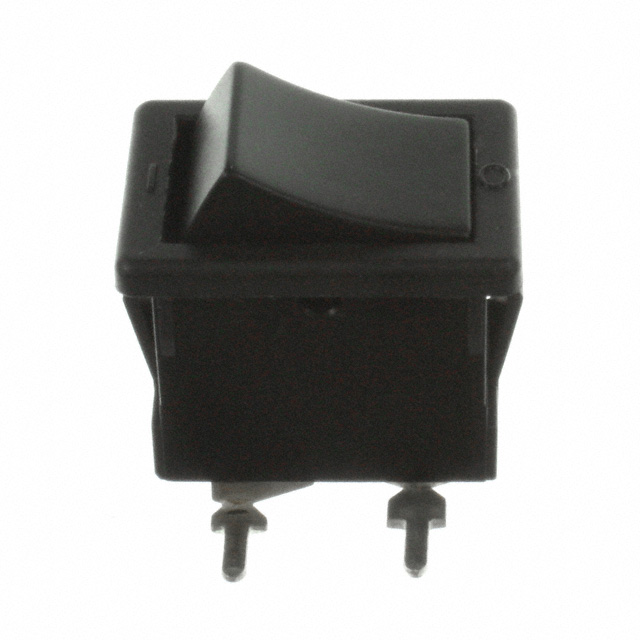

Rocker Switch SPST 6A (AC) 250 V Panel Mount, Snap-In, Right Angle
Documents
Technical documentation and resources
