CDBM140-G

Active

Comchip Technology

DIODE SCHOT 40V 1A MINISMA

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOT 40V 1A MINISMA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

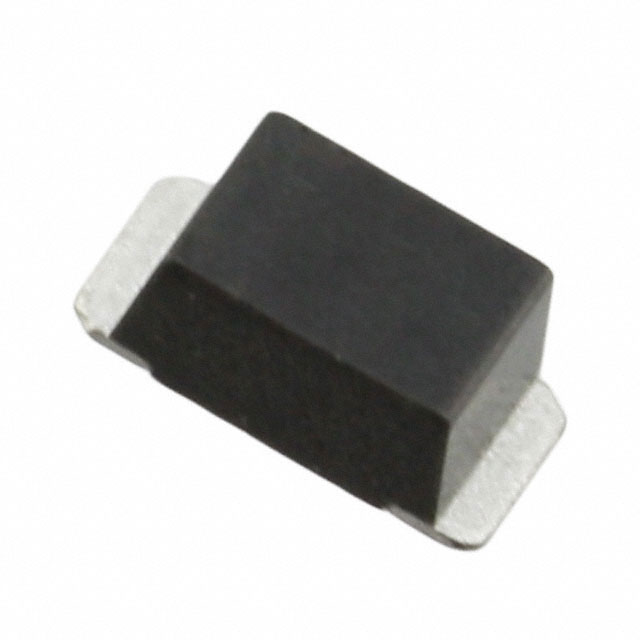

Diode 40 V 1A Surface Mount Mini SMA/SOD-123

Technical documentation and resources

No documents available

Specification	CDBM140-G	CDBM140 Series

Capacitance @ Vr, F	120 pF	120 - 200 pF
Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	500 µA	1 - 500 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	100 - 125 °C
Operating Temperature - Junction [Min]	-50 °C	-55 - -50 °C
Package / Case	SOD-123T	SOD-123F, SOD-123T
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	Mini SMA/SOD-123	SOD-123F, Mini SMA/SOD-123
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV	400 - 500 mV

Part	Speed	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Supplier Device Package	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]
Comchip Technology CDBM140LR-HF	200 mA, 500 ns	SOD-123F	450 mV	125 °C	-50 °C	200 pF	SOD-123F	200 µA	Surface Mount	Schottky	1 A	40 V
Comchip Technology CDBM140-G	200 mA, 500 ns	SOD-123T	500 mV	125 °C	-50 °C	120 pF	Mini SMA/SOD-123	500 µA	Surface Mount	Schottky	1 A	40 V
Comchip Technology CDBM140L-HF	200 mA, 500 ns	SOD-123T	400 mV	100 °C	-55 C	130 pF	Mini SMA/SOD-123	1 mA	Surface Mount	Schottky	1 A	40 V
