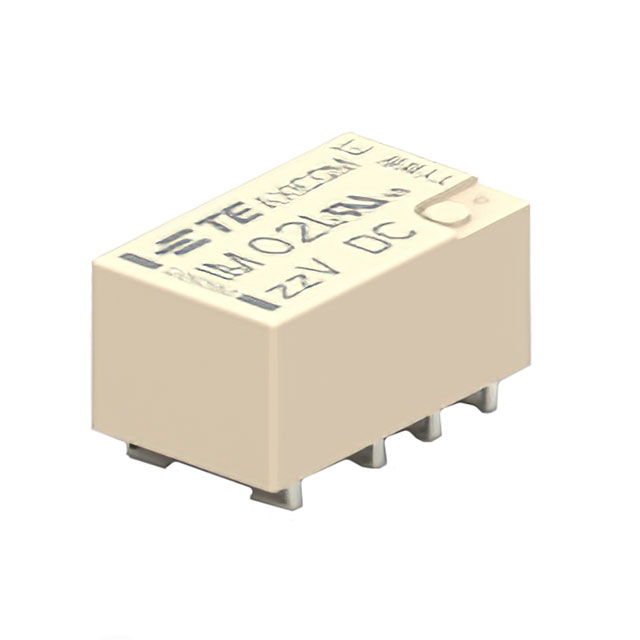

IM02IJR
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM DPDT 5A 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IM02IJR
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM DPDT 5A 4.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IM02IJR |
|---|---|
| Approval Agency | VDE, UR |
| Coil Current | 31.1 mA |
| Coil Resistance | 145 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4.5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 60 W, 62.5 VA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.38 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | Telecom |
| Release Time | 3 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.19 | |
| 10 | $ 3.93 | |||
| 25 | $ 3.49 | |||
| 50 | $ 3.32 | |||
| 100 | $ 3.15 | |||
| 250 | $ 2.80 | |||
| 500 | $ 2.62 | |||
| Tape & Reel (TR) | 1000 | $ 2.45 | ||
| 3000 | $ 2.40 | |||
Description
General part information
IM02I Series
Telecom Relay DPDT (2 Form C) 4.5VDC Coil Surface Mount
Documents
Technical documentation and resources
