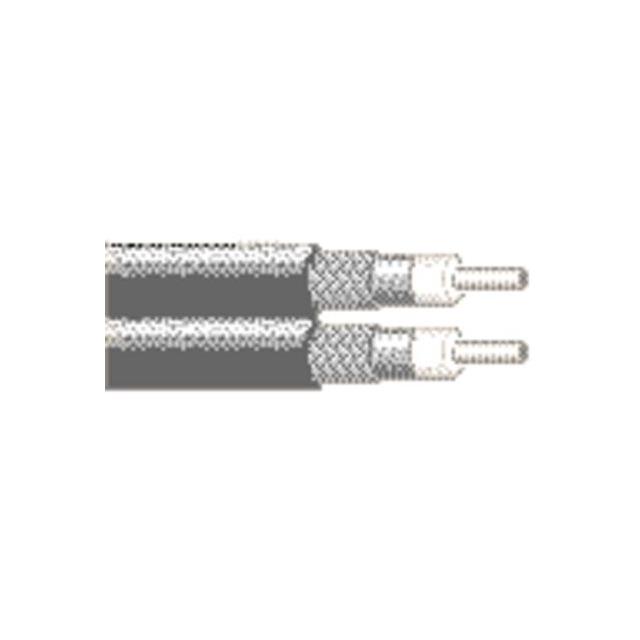

735A2 0081000

Obsolete

Belden Inc.

#26 PE BRD PVC DUAL

Search across all available documentation for this part.

Obsolete

Belden Inc.

#26 PE BRD PVC DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	735A2 0081000

Cable Type	Multi-Conductor - Riser
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.077 "
Dielectric Diameter [diameter]	1.96 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.55 mm
Jacket (Insulation) Diameter [diameter]	0.258 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
VoP, Velocity of Propagation	76
Wire Gauge	26 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Wire Gauge	Shield Type	VoP, Velocity of Propagation	Impedance	Cable Type	Conductor Material
Belden Inc. 735A2 0081000	Poly-Vinyl Chloride (PVC)	6.55 mm	0.258 in	95 % 100 %	Solid	Gray	-40 °C	75 ░C	Aluminum Polyester Copper Tinned	0.077 "	1.96 mm	304.8 m	1000 ft	26 AWG	Braid Foil	76	75 Ohms	Multi-Conductor - Riser	Copper Covered Silver Coated Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Multi-Conductor - Riser Cable 26 AWG 1000.0' (304.80m) 75 Ohms
