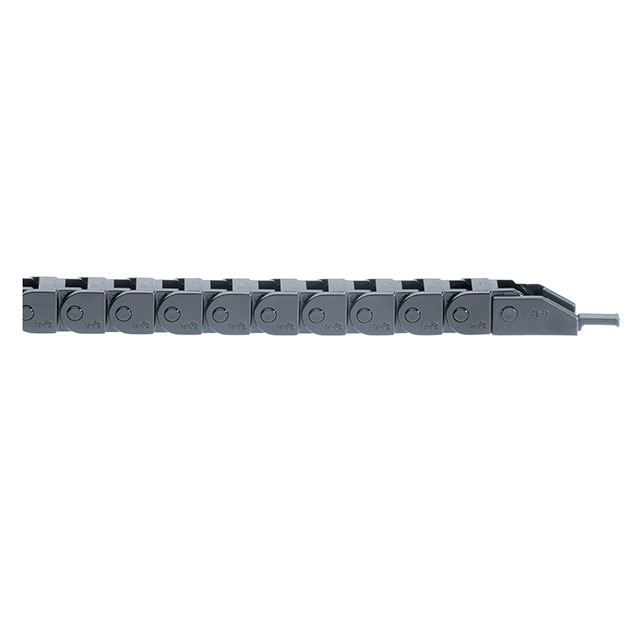

Z08-40-048-0

Active

Igus

CABLE CARRIER .76H X 1.90W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .76H X 1.90W 1=1FT

Technical Specifications

Parameters and characteristics for this part

CABLE CARRIER .76H X 1.90W 1=1FT

Part	Cavity Width [y]	Cavity Width [y]	Outer Height	Outer Height	Outer Width [custom]	Outer Width [custom]	Link Pitch	Link Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Loading Side	Frame Type	Cavity Height [z]	Cavity Height [z]	Material
Igus Z08-40-048-0	1.57 in	39.88 mm	0.76 in	19.3 mm	48.26 mm	1.9 in	0.79 in	20.07 mm	-40 °C	80 C	Inside and Outside Bend	Open	0.57 in	14.48 mm	Igumid G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .76H X 1.90W 1=1FT
