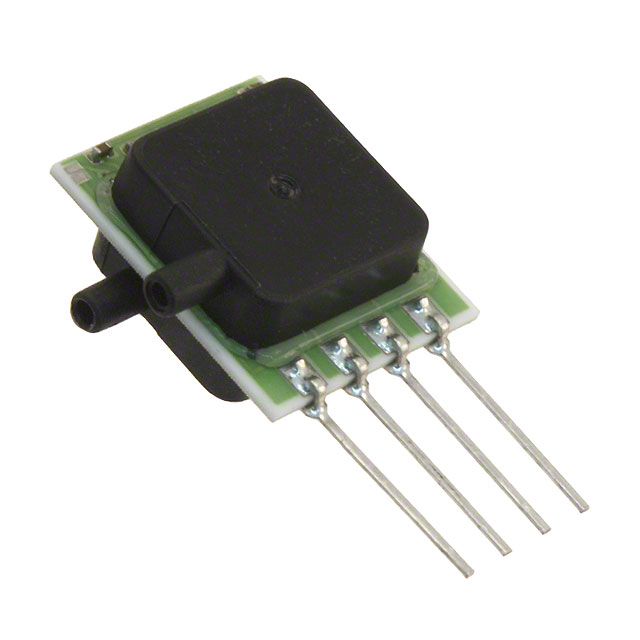

1 INCH-G-P4V-MINI

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.08" 4.25V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.08" 4.25V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 53.26

General part information

Pressure Sensor 0.04PSI (0.25kPa) Vented Gauge Male - 0.08" (2.03mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1 INCH-G-P4V-MINI	G-P4V-MINI Series

Accuracy	0.25 %	0.25 %
Applications	Board Mount	Board Mount
Features	Temperature Compensated, Amplified Output	Temperature Compensated, Amplified Output
Maximum Pressure	-	18.07 PSI
Maximum Pressure	-	124.59 kPa
Maximum Pressure [Max]	7.23 PSI	7.23 PSI
Maximum Pressure [Max]	49.83 kPa	49.83 kPa
Mounting Type	Through Hole	Through Hole
Operating Pressure	-	0.5 - 7.48 kPa
Operating Pressure	-	0.07 - 1.08 PSI
Operating Pressure [custom]	0.04 PSI	0.04 PSI
Operating Pressure [custom]	0.25 kPa	0.25 kPa
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Output [Max]	4.25 V	4.25 V
Output [Min]	0.25 V	0.25 V
Output Type	Analog Voltage	Analog Voltage
Package / Case	4-SIP Module	4-SIP Module
Port Size [x]	2.03 mm	2.03 mm
Port Size [x]	0.08 "	0.08 "
Port Style	Barbless	Barbless
Pressure Type	Vented Gauge	Vented Gauge
Termination Style	PC Pin	PC Pin
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

SENSOR 0.18PSIG 0.08" 4.25V

Part	Accuracy	Termination Style	Port Style	Mounting Type	Features	Applications	Output [Min]	Output [Max]	Port Size [x]	Port Size [x]	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Output Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]
Amphenol All Sensors Corporation 5 INCH-G-P4V-MINI	0.25 %	PC Pin	Barbless	Through Hole	Amplified Output, Temperature Compensated	Board Mount	0.25 V	4.25 V	2.03 mm	0.08 "	Vented Gauge	7.23 PSI	49.83 kPa	1.25 kPa	0.18 PSI	Analog Voltage	4-SIP Module	4.5 V	5.5 V	125 °C	-40 °C
Amphenol All Sensors Corporation 30 INCH-G-P4V-MINI	0.25 %	PC Pin	Barbless	Through Hole	Amplified Output, Temperature Compensated	Board Mount	0.25 V	4.25 V	2.03 mm	0.08 "	Vented Gauge			7.48 kPa	1.08 PSI	Analog Voltage	4-SIP Module	4.5 V	5.5 V	125 °C	-40 °C	18.07 PSI	124.59 kPa
Amphenol All Sensors Corporation 2 INCH-G-P4V-MINI		PC Pin		Through Hole	Temperature Compensated	Board Mount					Vented Gauge			0.5 kPa	0.07 PSI		4-SIP Module	4.5 V	5.5 V	85 °C	-25 °C
Amphenol All Sensors Corporation 1 INCH-G-P4V-MINI	0.25 %	PC Pin	Barbless	Through Hole	Amplified Output, Temperature Compensated	Board Mount	0.25 V	4.25 V	2.03 mm	0.08 "	Vented Gauge	7.23 PSI	49.83 kPa			Analog Voltage	4-SIP Module	4.5 V	5.5 V	125 °C	-40 °C			0.04 PSI	0.25 kPa
