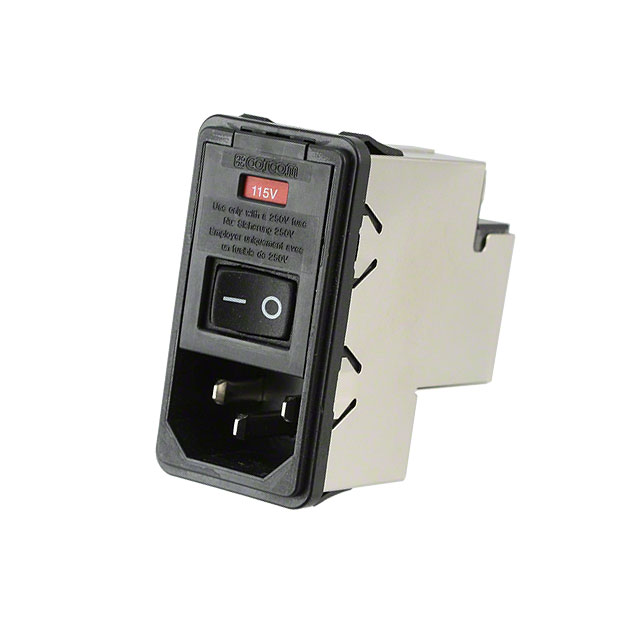

PS0SXDS6B
ActiveTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
PS0SXDS6B
ActiveTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PS0SXDS6B | PS0S Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A | 3 - 10 A |
| Current Rating - Filter | 6 A | 3 - 10 A |
| Features | Shielded, Voltage Selector | Conversion Clip, Shielded, Voltage Selector, Interconnection Block |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial, Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused | Fuse Holder, Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size | Variable Size |
| Panel Thickness [Max] | 2.9 mm | 2.11 - 2.9 mm |
| Panel Thickness [Max] | 0.114 in | 0.083 - 0.114 in |
| Panel Thickness [Min] | 0.79 mm | 0.79 mm |
| Panel Thickness [Min] | 0.031 " | 0.031 " |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.187 " | 0.187 " |
| Termination | 4.7 mm | 4.7 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 120 VAC | 120 VAC |
PS0S Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Approval Agency | Fuse Holder, Drawer | Voltage Rating - Appliance Inlet | Connector Type | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Switch Features | Accomodates a Fuse | Connector Style | Panel Cutout Dimensions | Mounting Type | Termination | Termination | Termination | Filter Type | Current Rating - Appliance Inlet | Features | Current Rating - Filter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters PS0SSSH3A | CSA, UL, VDE | Fuse Holder | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial, Medical | 3 A | Conversion Clip, Shielded, Voltage Selector | 3 A | |
TE Connectivity Corcom Filters PS0S0SSX0 | CSA, UL, VDE | Fuse Holder | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | 10 A | Conversion Clip | 10 A | |
TE Connectivity Corcom Filters PS0S0SM3E | CSA, UL, VDE | Fuse Holder | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | 3 A | Conversion Clip, Shielded | 3 A | |
TE Connectivity Corcom Filters PS0SSDH6A | CSA, UL, VDE | Fuse Holder, Twin Fused | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial, Medical | 6 A | Shielded, Voltage Selector | 6 A | |
TE Connectivity Corcom Filters PS0SXDS3B | CSA, UL, VDE | Fuse Holder, Twin Fused | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | 3 A | Shielded, Voltage Selector | 3 A | |
TE Connectivity Corcom Filters PS0S0DHX0 | CSA, UL, VDE | Fuse Holder, Twin Fused | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial, Medical | 10 A | 10 A | ||
TE Connectivity Corcom Filters PS0SXSSX0 | CSA, UL, VDE | Fuse Holder | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | 10 A | Conversion Clip, Voltage Selector | 10 A | |
TE Connectivity Corcom Filters PS0S0SBX0 | CSA, UL, VDE | Fuse Holder | 120 VAC | Receptacle, Male Blades - Module | 2.11 mm | 0.083 " | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | 10 A | Conversion Clip, Interconnection Block | 10 A | |
TE Connectivity Corcom Filters PS0SXDH60 | CSA, UL, VDE | Fuse Holder, Twin Fused | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial, Medical | 6 A | Voltage Selector | 6 A | |
TE Connectivity Corcom Filters PS0SSSS6A | CSA, UL, VDE | Fuse Holder | 120 VAC | Receptacle, Male Blades - Module | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Switch On-Off | IEC 320-C14 | Variable Size | Panel Mount, Snap-In | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | 6 A | Conversion Clip, Shielded, Voltage Selector | 6 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.88 | |
| 10 | $ 29.66 | |||
| 25 | $ 28.38 | |||
| 80 | $ 26.55 | |||
| 320 | $ 25.09 | |||
Description
General part information
PS0S Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
