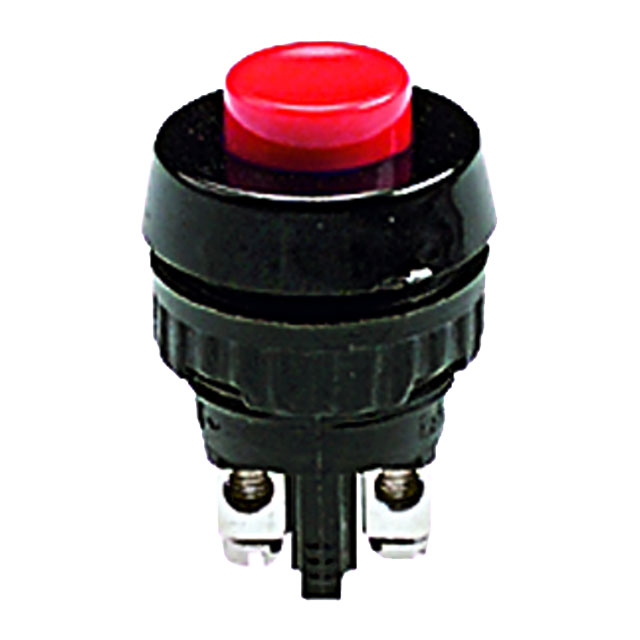

1.10.001.001/0104

Active

RAFI USA

SWITCH PUSH SPST-NO 0.7A 250V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NO 0.7A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.10.001.001/0104	1.10001 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Black	Red, Black
Current Rating (Amps)	700 mA	700 mA
Electrical Life	25000 Steps	25000 Steps
Ingress Protection	IP40	IP40
Mechanical Life	25000 Steps	25000 Steps
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-18.4 °F	-18.4 °F
Panel Cutout Dimensions [diameter]	15.2 mm	15.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

MOMENTARY PUSHBUTTON OPAQUE RED

Part	Circuit	Termination Style	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Marking	Mechanical Life	Ingress Protection	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Type	Mounting Type	Electrical Life
RAFI USA 1.10.001.161/0301
RAFI USA 1.10.001.001/0301	SPST-NO	Screw Terminal	Off-Mom	-18.4 °F	85 °C	250 V	No Marking	25000 Steps	IP40	Button, Round	700 mA	15.2 mm	Red	Standard	Panel Mount, Front	25000 Steps
RAFI USA 1.10.001.252/0301
RAFI USA 1.10.001.001/0104	SPST-NO	Screw Terminal	Off-Mom	-18.4 °F	85 °C	250 V	No Marking	25000 Steps	IP40	Button, Round	700 mA	15.2 mm	Black	Standard	Panel Mount, Front	25000 Steps
RAFI USA 1.10.001.151/0205

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
