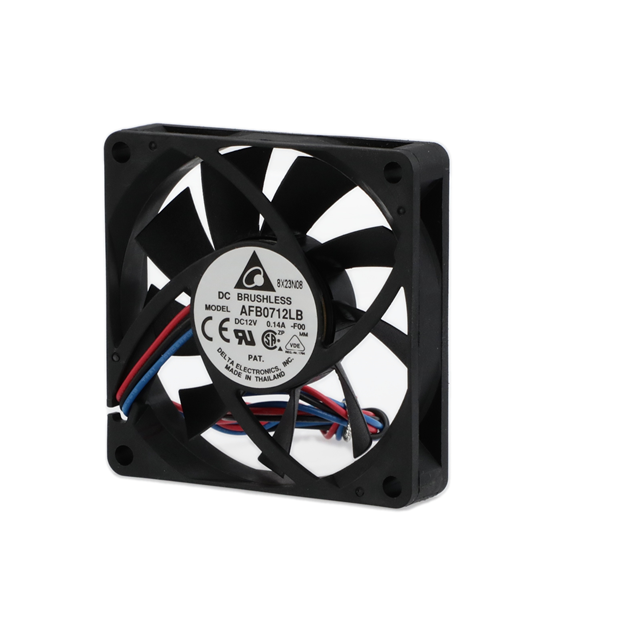

AFB0712LB-F00

Active

Delta Electronics

FAN AXIAL 70X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0712LB-F00

Active

Delta Electronics

FAN AXIAL 70X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0712LB-F00

Air Flow	23.4 CFM
Air Flow	0.655 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	26.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2800 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	47.17 g
Weight	0.104 lb
Width [x]	15 mm

AFB0712 Series

Part	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	RPM	Air Flow	Air Flow	Weight	Weight	Power (Watts)	Bearing Type	Material - Blade	Material - Frame	Current Rating (Amps)	Width [y]	Static Pressure	Static Pressure	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Lifetime @ Temp.	Termination	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Features	Width [x]
Delta Electronics AFB0712VH-A	12 VDC	5 VDC	12.6 VDC	5500 RPM	1.46 mł/min	52 CFM	90.26 g	0.199 lb	5.28 W	Ball	Plastic	Plastic	0.44 A	25.4 mm	107.9 Pa	0.433 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	47.5 dB	70000 Hrs	2 Wire Leads	70 mm	70 mm	Tubeaxial
Delta Electronics AFB0712SH-AF00	12 VDC	5 VDC	13.8 VDC	6300 RPM	1.71 m³/min	61.1 CFM	107.95 g	0.238 lb	7.56 W	Ball	Plastic	Plastic	0.63 A	25.4 mm	155.7 Pa	0.625 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50.5 dB(A)	70000 Hrs	3 Wire Leads	70 mm	70 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0712HHB	12 VDC			4300 RPM	1.05 m³/min	37.5 CFM	47.17 g	0.104 lb	3.12 W	Ball	Plastic	Plastic	0.26 A		52.3 Pa	0.21 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	38.5 dB	70000 Hrs	2 Wire Leads	70 mm	70 mm	Tubeaxial		15 mm
Delta Electronics AFB0712VHB-F00	12 VDC	5 VDC	12.6 VDC	5200 RPM	1.27 mł/min	45.5 CFM	52.62 g	0.116 lb	4.44 W	Ball	Plastic	Plastic	370 mA		76.4 Pa	0.306 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	44 dB	70000 Hrs	3 Wire Leads	70 mm	70 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	15 mm
Delta Electronics AFB0712MB	12 VDC			3300 RPM	0.79 mł/min	28.2 CFM	47.17 g	0.104 lb	1.68 W	Ball	Plastic	Plastic	140 mA		30.6 Pa	0.123 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	31 dB(A)	70000 Hrs	2 Wire Leads	70 mm	70 mm	Tubeaxial		15 mm
Delta Electronics AFB0712VHD-R00	12 VDC	5 VDC	13.2 VDC	5000 RPM	1.31 mł/min	46.9 CFM	69.85 g	0.154 lb	4.2 W	Ball	Plastic	Plastic	0.35 A	20 mm	71 Pa	0.285 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	44.3 dB(A)	70000 Hrs	3 Wire Leads	70 mm	70 mm	Tubeaxial	Locked Rotor Sensor
Delta Electronics AFB0712MB-F00	12 VDC			3300 RPM	0.79 mł/min	28.2 CFM	47.17 g	0.104 lb	1.68 W	Ball	Plastic	Plastic	140 mA		30.6 Pa	0.123 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	31 dB(A)	70000 Hrs	3 Wire Leads	70 mm	70 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	15 mm
Delta Electronics AFB0712SHX02	12 VDC	5 VDC	13.8 VDC	6300 RPM	1.71 m³/min	61.1 CFM	90.26 g	0.199 lb	7.8 W	Ball	Plastic	Plastic	650 mA	25.4 mm	155.7 Pa	0.625 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50.5 dB(A)	70000 Hrs	4 Wire Leads	70 mm	70 mm	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics AFB0712HHD	12 VDC	5 VDC	13.8 VDC	4400 RPM	1.13 mł/min	40.4 CFM	69.85 g	0.154 lb	3 W	Ball	Plastic	Plastic	0.25 A	20 mm	55.3 Pa	0.222 in H2O	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	40.5 dB(A)	70000 Hrs	2 Wire Leads	70 mm	70 mm	Tubeaxial
Delta Electronics AFB0712LB-F00	12 VDC			2800 RPM	0.655 m³/min	23.4 CFM	47.17 g	0.104 lb		Ball	Plastic	Plastic					CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	26.5 dB	70000 Hrs	3 Wire Leads	70 mm	70 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	224	$ 10.54

Description

General part information

AFB0712 Series

Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Ball 23.4 CFM (0.655m³/min) 3 Wire Leads
