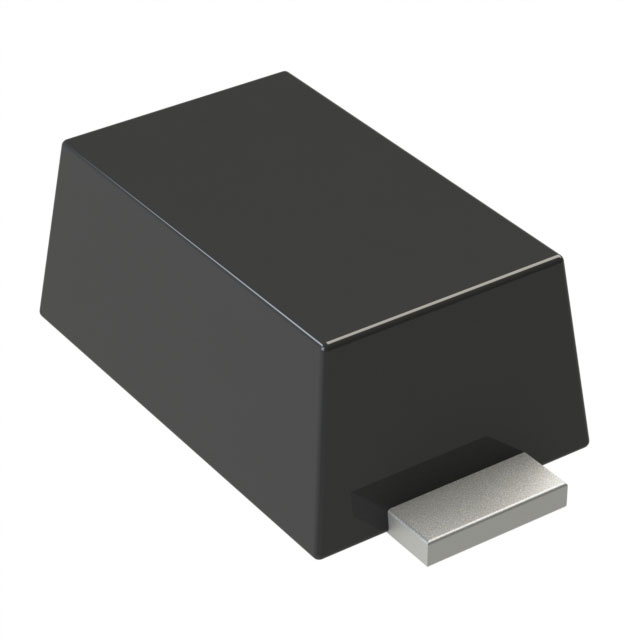

CRS15(TE85L,Q,M)

Active

Toshiba Semiconductor and Storage

DIODE SCHOTTKY 30V 3A S-FLAT

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

DIODE SCHOTTKY 30V 3A S-FLAT

Technical Specifications

Parameters and characteristics for this part

Specification	CRS15(TE85L,Q,M)

Capacitance @ Vr, F	90 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	50 çA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	SOD-123F
Speed	200 mA, 500 ns
Supplier Device Package	S-FLAT (1.6x3.5)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	520 mV

Part	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Package / Case	Speed	Technology	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io)
Toshiba Semiconductor and Storage CRS15(TE85L,Q,M)	90 pF	30 V	50 çA	S-FLAT (1.6x3.5)	SOD-123F	200 mA 500 ns	Schottky	520 mV	150 °C	-40 °C	Surface Mount	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 3A Surface Mount S-FLAT (1.6x3.5)
