FWE030015B-10A

Active

Inventus Power

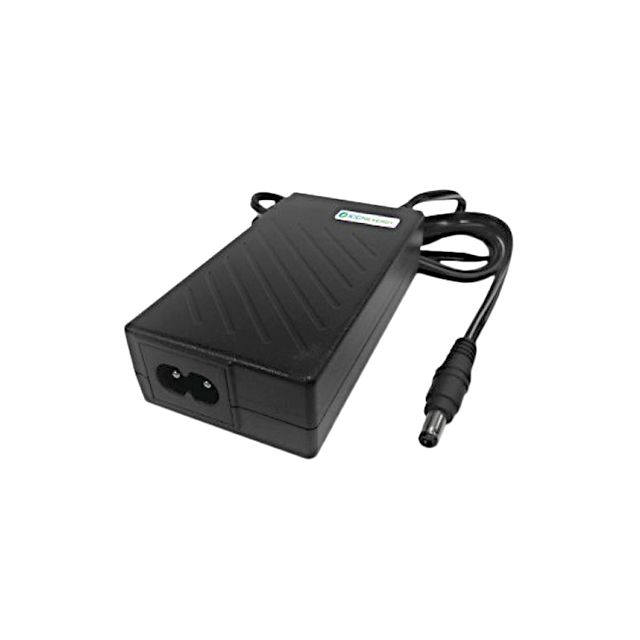

AC/DC DESKTOP ADAPTER 15V 30W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 15V 30W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 15V 30W

Part	Cord Length	Cord Length	No Load Power Consumption	Polarization	Power (Watts)	Input Type	Weight	Weight	Standard Number	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Efficiency	Form	Approval Agency	Applications	Region Utilized	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output
Inventus Power FWE030015B-10A	1.22 m	48 in	300 mW	Positive Center	30 W	Cord	160.12 g	0.353 lb	60950-1, 62368-1	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	60 °C	0 °C	2 A	Level V	Desktop (Class II)	CB, CCC, CE, cTUVus	ITE (Commercial)	International	IEC 320-C6	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in	15 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	240	$ 21.83
