2702481

Active

Phoenix Contact

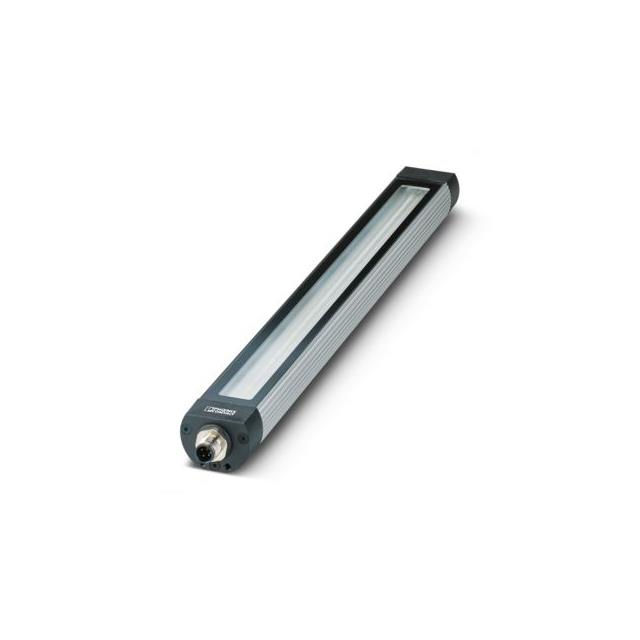

LED MACHINE LIGHT, 1080LM, 10.5W, 24VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

LED MACHINE LIGHT, 1080LM, 10.5W, 24VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2702481	27024 Series

CCT (K)	5000 K	5000 - 6500 K
Color	Cool, White	Cool, White
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	80	65 - 85
Features	IP67, With Connector	IP67, With Connector, IPX9
Height [z]	30 mm	20 - 58 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	1080 lm	300 - 3200 lm
Size / Dimension [x]	365 mm	190 - 1176 mm
Size / Dimension [y]	40 mm	22.5 - 74 mm
Type	LED Module	LED Module
Viewing Angle	95 °, 85 °	75 - 105 °
Viewing Angle	-	40 °

LED MOD COOL WHT RECT 5000K

Part	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lens Type	Features	Height [z]	Color	Type	CCT (K)	Viewing Angle	Configuration	Viewing Angle [custom]
Phoenix Contact 2702489	70 mm	1070 mm	85	3200 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702482	40 mm	540 mm	80	1680 lm	Flat	IP67, With Connector	30 mm	Cool, White	LED Module	5000 K	85 °, 95 °	Rectangle
Phoenix Contact 2702479	22.5 mm	1176 mm	75	1200 lm	Flat	IP67	23 mm	Cool, White	LED Module		95 °, 105 °	Rectangle
Phoenix Contact 2702477	22.5 mm	616 mm	75	600 lm	Flat	IP67	23 mm	Cool, White	LED Module		95 °, 105 °	Rectangle
Phoenix Contact 2702488	70 mm	790 mm	85	2300 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702483	40 mm	715 mm	80	2280 lm	Flat	IP67, With Connector	30 mm	Cool, White	LED Module	5000 K	85 °, 95 °	Rectangle
Phoenix Contact 2702486	70 mm	650 mm	85	1800 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702484	70 mm	370 mm	85	900 lm	Flat	IP67, With Connector	58 mm	Cool, White	LED Module	5000 K	75 °, 95 °	Rectangle
Phoenix Contact 2702491	74 mm	284 mm	65	460 lm	Flat	IP67, IPX9	20 mm	Cool, White	LED Module	6500 K		Rectangle	40 °
Phoenix Contact 2702481	40 mm	365 mm	80	1080 lm	Flat	IP67, With Connector	30 mm	Cool, White	LED Module	5000 K	85 °, 95 °	Rectangle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Rectangle
