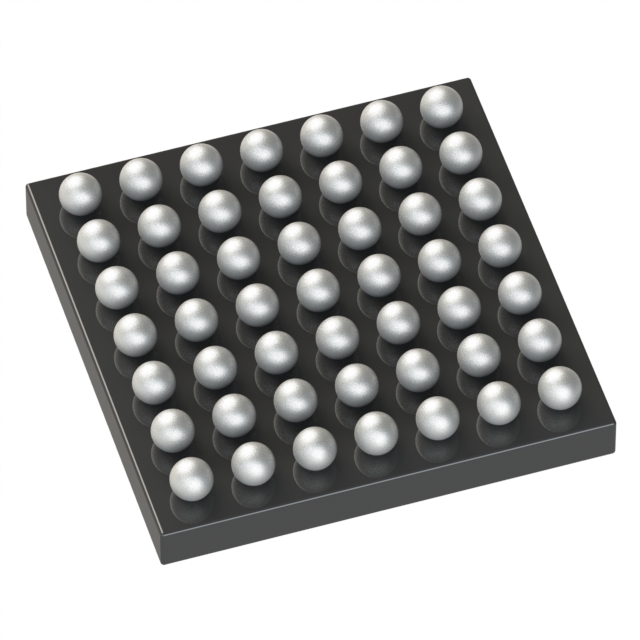

CS42L42-CWZR
ActiveCirrus Logic Inc.
IC CODEC LP HIGH PERF 49WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS42L42-CWZR
ActiveCirrus Logic Inc.
IC CODEC LP HIGH PERF 49WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS42L42-CWZR |
|---|---|
| Data Interface | I2S |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 2 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | WLCSP, 49-UFBGA |
| Resolution (Bits) | 24 b |
| Sigma Delta | False |
| Supplier Device Package | 49-WLCSP |
| Supplier Device Package [x] | 2.64 |
| Supplier Device Package [y] | 2.64 |
| Type | Audio |
| Voltage - Supply, Analog | 1.2 V, 1.8 V |
| Voltage - Supply, Digital | 1.2 V, 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 5.92 | |
Description
General part information
CS42L42 Series
Audio Interface 24 b I2S 49-WLCSP (2.64x2.64)
