UHE-3.3/7500-Q12-C
ActiveMurata Power Solutions Inc.

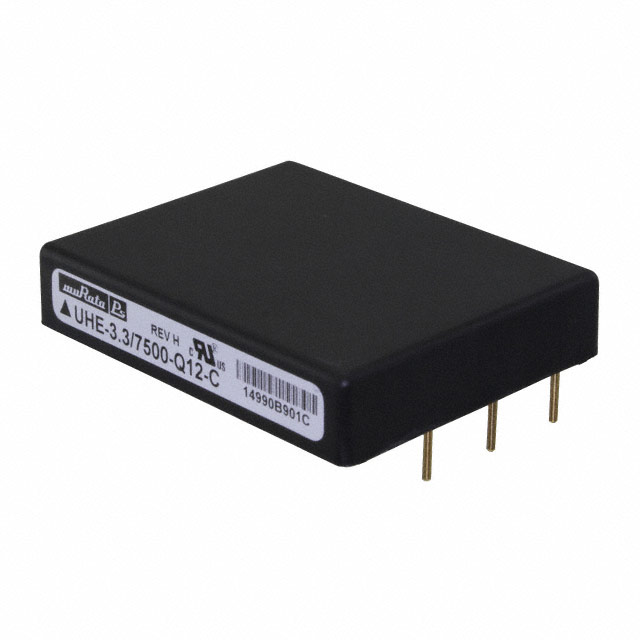

DC DC CONVERTER 3.3V 24W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHE-3.3/7500-Q12-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 24W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UHE-3.3/7500-Q12-C | UHE-3.3 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 7.5 A | 7.5 A |
| Efficiency | 88 % | 88 - 90 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 8 Leads | 9-DIP Module, 6 Leads, 9-DIP Module, 8 Leads |
| Power (Watts) | 24 W | 24 - 25 W |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [y] | 40.64 mm | 40.64 mm |
| Size / Dimension [z] | 0.4 in | 0.4 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 9 V | 9 - 36 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 71.49 | |
| 5 | $ 64.91 | |||
| 10 | $ 59.71 | |||
| 25 | $ 58.48 | |||
UHE-3.3 Series
DC DC CONVERTER 3.3V 25W
| Part | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Applications | Number of Outputs | Current - Output (Max) [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Control Features | Mounting Type | Efficiency | Package / Case | Type | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UHE-3.3/7500-Q48-C | 25 W | 0.4 in | 50.8 mm | 40.64 mm | 75 V | 85 °C | -40 °C | OCP, OTP, Remote On/Off, SCP, UVLO | ITE (Commercial) | 1 | 7.5 A | 1.5 kV | 18 V | Active High, Enable | Through Hole | 90 % | 9-DIP Module, 6 Leads | Isolated Module | 3.3 V |
Murata Power Solutions Inc. UHE-3.3/7500-D48-C | 25 W | 0.4 in | 50.8 mm | 40.64 mm | 75 V | 85 °C | -40 °C | OCP, OTP, Remote On/Off, SCP, UVLO | ITE (Commercial) | 1 | 7.5 A | 1.5 kV | 36 V | Active High, Enable | Through Hole | 88.7 % | 9-DIP Module, 6 Leads | Isolated Module | 3.3 V |
Murata Power Solutions Inc. UHE-3.3/7500-Q12-C | 24 W | 0.4 in | 50.8 mm | 40.64 mm | 36 V | 85 °C | -40 °C | OCP, OTP, Remote On/Off, SCP, UVLO | ITE (Commercial) | 1 | 7.5 A | 1.5 kV | 9 V | Active High, Enable | Through Hole | 88 % | 9-DIP Module, 8 Leads | Isolated Module | 3.3 V |
Description
General part information
UHE-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 7.5A 9V - 36V Input
Documents
Technical documentation and resources
